Shenzhen Homk Telecom Tech Co., Ltd.

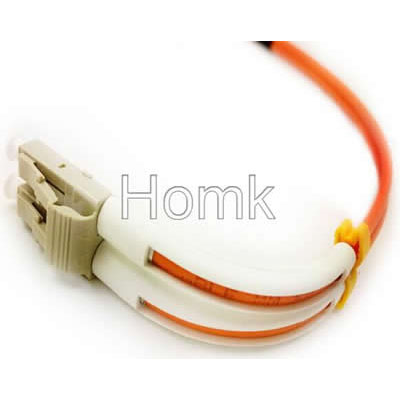

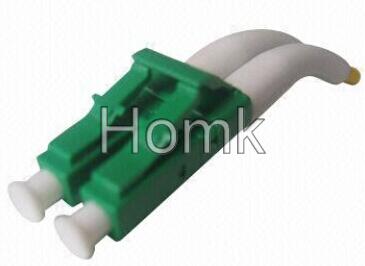

90 degree LC DX fiber connector

Details

90 degree LC DX fiber connector


1. Features:



  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • UL-rated plastic housing

  • Telcordia style boots

  • Free-floating ceramic ferrule



2. Specifications:

Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
e45dB
e50dB
e60dB
e35dB
Durability
<0.1dB typical change,500 matings
Operating Temperature
-40 to +75
-40 to +75
Ferrule Hole Sizes
125.0+1/-0um, Conentricity:d1um
125um,Conectricity:1d3um
125.3+1/-0um, Conentricity:d1um
127um,Conectricity:1d3um
125.5+1/-0um, Conentricity:d1um
128um,Conectricity:1d3um
126.0+1/-0um, Conentricity:d1um
