DIN Patch Cord

Details

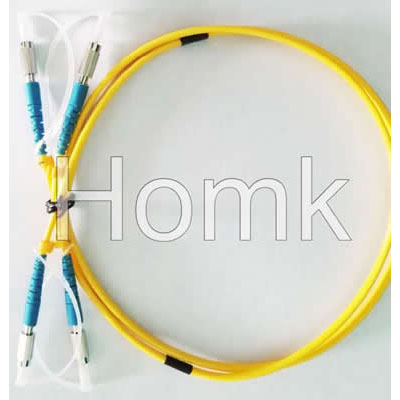

DIN Fiber Patch Cord


Feature:

  1. Low insertion loss and back reflection loss

  2. Good echangeability

  3. Good Durability

  4. High temperature stability.

  5. Standard: Telcordia GR-326-CORE

Specification:

Mode

SM

MM

Polish

UPC/APC

PC

Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50DB(PC)

≥60DB(APC)

≥30dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB typical change, 1000 matings

Tensile Strength

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)
