E2000 Armoured Fiber Optic Patch Cord

Details

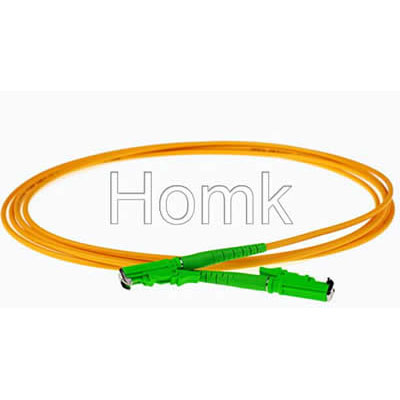

E2000 Armoured Fiber Optic Patch Cord


Feature:

1.Low insertion loss and back reflection loss

 2.Good echangeability

3.Good Durability

4.High temperature stability.

5.Standard: Telcordia GR-326-CORE

6.Precise connector

7.Excellent mechanical capability

8.Patch cords accord with bellcord GR-326 ,ISO9001,RoHS
Specification:

Mode

SM

MM

Polish

UPC

APC

PC

Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB (1000 times mating)

Tensile Strengh

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)
