HK-926V OTDR

Details

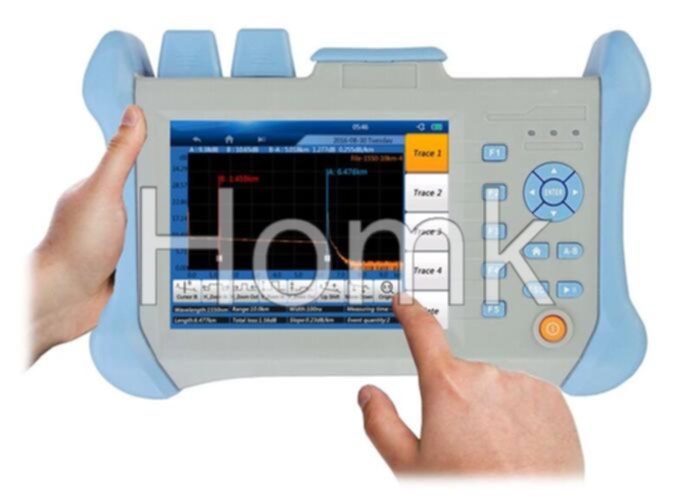

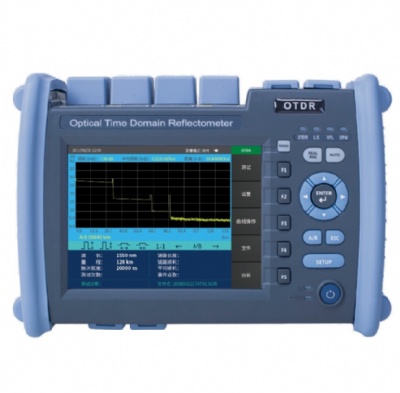

HK-926V OTDR


Features

  • 5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery

  • Event Dead zone as lower as 1.5meter

  •  Combined multi dynamic range and wavelengths

  •  Muti measurement mode, support Touching LCD and pressing keys

  • Warning function could prevent OTDR module from being damaged by optical signal in fiber.

  • Realtime measuring function, convenient to monitor the splicing process

  •  Integrated 10mw Visual Fault Locator

  • Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input ,

  • Integrated with 2GB internal memory, more than 20,000 groups curve storage

  • PC remote access and control function is available , which support the printing work of the measurement report

Test curve of typical events as below:

  • Precision judgment of fiber faults; splicing posit and connector terminal;

  • Precision measurement of test distance and the fiber loss

  •  Contracted design style ,lively graphical interface, easy operation and easy analysis of various events

  •  Measure the length of whole fiber; length between two points, as well as the distance, loss and attenuation coefficient etc

  •  Detailed description of fiber loss distribution curve and the events


Technical specifications

Pulse Width

SM

5ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs ,



SM

Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km,

Sampling Resolution

Minimum 0.05m

Sampling Point

128,000

Linearity

≤0.05dB/dB

Loss Threshold

0.01dB

Loss Resolution

0.001dB

Distance Resolution

0.01m

Distance Accuracy

±(1m+measuring distance×3×10 +sampling resolution)

Data Storage

20000 groups of curve

VFL

10mW,CW/2Hz

Interface

3 USB ports(Type A×2,Type B×1)

Display

5.6 inch TFT-LCD, Touching screen


7.4V/4.4Ah lithium battery , support 8 hours continuous working

Working conditions

Working Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃;Humitity :≤95%(non-dew)

Dimensions/Weight

253×168×73.5mm / 1.5kg(include battery)

Packing list

Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton



Functions:

 Automatic Measurement ModeOperators do not need to choose the test distance and pulse width, the tester will automatically judge the length, and choose suitable dynamic range as well as pulse width to complete the work;  The storage of event trace can be saves manually or automatically which will be convenient for data analysis

Multiple Wavelengths Measurement ModeIn order to use different wavelengths to execute the loss calculation in one fiber,  we can choose duplex wavelengths test mode from parameter settings,  the tester will switch wavelengths automatically

Multiple Trace AnalysisSimultaneous display 4 traces, operators can compare the traces and make analysis of any ones among the traces

Online TestThis will protect the test instruments and equipment

Duplex Operation Mode: Pure operation through touch screen ; or pure operation through the pressing keys


Data Analysis

Save and generator standard trace file(. Sor), more than 20000 groups storage capacity



Print the analysis report and traces which make the acceptance or work easily;
