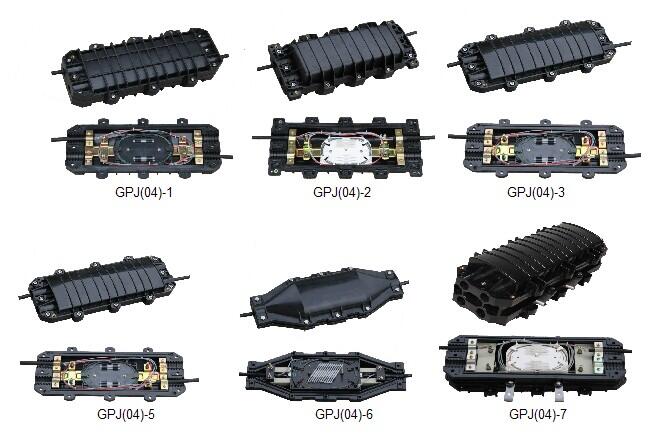

In-line fiber closure(GPJ(04))
Description：
With 4 fiber cables in-out ports
Cable diameter: Ф10～Ф22
Suitable for duct,aerial,direct buried application
Item | GPJ(04)-1 | GPJ(04)-2 | GPJ(04)-3 | GPJ(04)-5 | GPJ(04)-6 | GPJ(04)-7 |
Dimension(mm） | 435x190x85 | 435x190x120 | 435x190x120 | 435x190x80 | 435x140x75 | 435x190x170 |
Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 1.5 | 4.7 |
Cable diameter(mm) | Ф10～Ф17 | Ф10～Ф22 | Ф10～Ф22 | Ф10～Ф17 | Ф10-Ф12.5 | Ф10～Ф22 |
Cable ports | 2 in,2 out | 1 in,1 out | 4 in,4 out | |||
Capacity of splice tray | 24 | 24 | 24 | 24 | 12 | 24 |
Max pcs of splice tray | 4 | 8 | 8 | 4 | 4 | 12 |
Max capacity | 96 | 192 | 192 | 96 | 48 | 288 |
Sealing structure | Sticky structure | |||||
Packing infromation
Type | Inner carton size (mm) | Inner carton weight (kg) | Outer carton size (mm) | Outer carton weight (kg) | Q’ty per cartons (pcs) |
GPJ(04)-1 | 496x196x98 | 2.6 | 515x425x575 | 27.6 | 10 |
GPJ(04)-2 | 496x196x138 | 2.8 | 515x425x575 | 24.0 | 8 |
GPJ(04)-3 | 496x196x138 | 2.6 | 515x425x575 | 22.4 | 8 |
GPJ(04)-5 | 496x196x98 | 2.3 | 515x425x575 | 24.6 | 10 |
GPJ(04)-6 | 440x155x80 | 1.5 | 470x440x340 | 16.3 | 10 |
GPJ(04)-7 | 496x196x180 | 4.7 | 515x425x575 | 30 | 6 |
