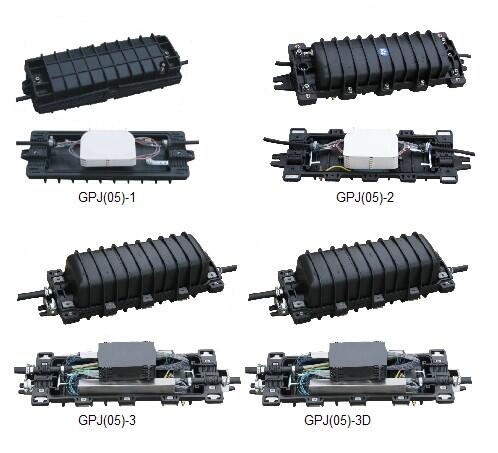

In-line fiber closure GPJ(05)
Description：
Two cables in,two cables out
Easy to install
Suitable for extreme climate,composite engineering plastic body
Rubber gasket sealing
Available for duct,aerial,direct buried.
Item | GPJ(05)-1 | GPJ(05)-2 | GPJ(05)-3 | GPJ(05)-3D |
Size (mm） | 485x165x110 | 580x185x125 | 655x215x185 | 655x215x185 |
Weight(kg) | 2.5 | 3.5 | 5.6 | 5.6 |
Cable diameter | Ф10～Ф22 | Ф10～Ф22 | Ф10～Ф22 | Ф10～Ф17 |
Cable ports | 2 in, 2 out | 2 in, 2 out | 2 in, 2 out | 2 in, 2 out |
Splice tray cores | 24 | 24 | 24 | 72 ribbon fiber |
Max splice tray no. | 4 | 8 | 8 | 5 |
Max capacity | 96 cores | 192 cores | 192 cores | 360 cores |
Sealing structure | Sticky cincture | Sticky cincture | Sticky cincture | Sticky cincture |
Packing information:
Type | Inner carton size (mm) | Inner carton weight (kg) | Outer carton size (mm) | Outer carton weight (kg) | No. /carton (pcs) |
GPJ(05)-1 | 520x180x120 | 2.5 | 540x405x515 | 21.1 | 8 |
GPJ(05)-2 | 580x200x125 | 3.5 | 605x435x410 | 22.5 | 6 |
GPJ(05)-3 | 670x235x200 | 5.6 | 690x505x435 | 23.9 | 4 |
GPJ(05)-3D | 670x235x200 | 5.6 | 690x505x435 | 23.9 | 4 |
