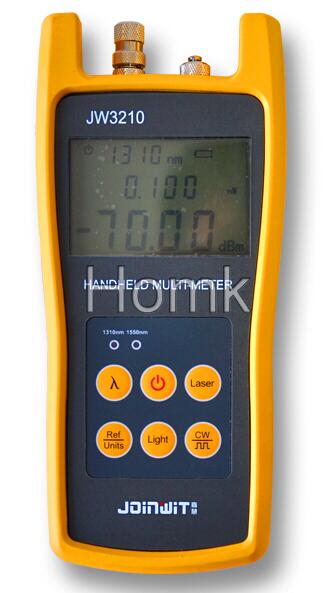

JW3210 Multi-fonction optical multimeter
JW3210 is highly cost-effective optical multimeter. It’s the integration of power meter and light source, user can operate the two function together or separately, which improves his work efficiency greatly. Moreover, JW3210 is widely used in the fiber-optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.
Great LED display,easy to operate
Automatic switching function of the internal source wavelength
Detection of the frequency light
Power measurement in dBm and mw
Wide-range detection zone
Battery indication
Application
Maintenance of telecommunication project
CATV project maintenance
Digital data network project maintenance
Teaching and research in optical communications
Other fiber-optic projects
Main Characteristic
Instrument model parameters | JW3210A | JW3210C |
Power meter | ||
Calibration wavelength(nm) | 850,1300, 1310,1490,1550,1625(Wavelength is optional) | |
Testing range(dBm) | -70~+6 | -50~+26 |
Display resolution(dB) | 0.01 | |
Uncertainty(dB) | ≤±0.25 | |
linearity(dB) | ≤±0.1 | |
Connector type | FC(Optional) | |
Source | ||
Working wavelenght(nm) | 1310/1550(±20)(customizable) | |
Typical Output Power(dBm) | -5(customizable) | |
Stability(dB,30min,20°C) | ≤0.1dB | |
Connector type | FC/PC(customizable) | |
Modulation frequency (Hz) | CW,270Hz,1KHz,2KHz | |
Other parts | ||
Power supply | 3*AA 1.5Vbattery / Mini USB 5Vadapter | |
Auto-off time (min) | 10 | |
Battery continuous operation time)(h) | Source ON≥50,source off≥200 | |
Working temperature(°C) | -10~+60 | |
Storage temperature(°C) | -25~+70 | |
size(mm) | 171×73×26 | |
weight(g,not including battery) | 175 | |
