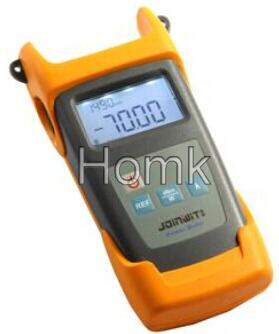

JW3211 fiber Power meter

Details

JW3211 fiber Power meter


Features

  • Great LED display,easy to operate

  • Automatic switching function of the internal source wavelength

  • Detection of the frequency light

  • Power measurement in dBm and mw

  • Wide-range detection zone

  • Battery indication

Applications:

Maintenance of telecommunication project

  • CATV project maintenance

  • Digital data network project maintenance

  • Teaching and research in optical communications

  • Other fiber-optic projects

Technical Specifications



MODEL

JW3211A

JW3211C

Wavelength(nm)

800~1700nm

Detector Type

InGaAs

Detector Size

Ø 1.0mm

Measurement Range (dBm)

-70~+10

-50~+26

Uncertainty

±5%

Calibrated Wavelength(nm)

850,1300,1310,1490,1550,1625

Resolution(dB)

0.01

Optical Connector

FC(interchangeable SC,ST) / as well as 2.5mm universal

Power Supply

Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)

Battery Operating Time

140 h with 1.5V Battery(3pcs)

Operating Temperature(°C)

-10 ~ +60

Storage Temperature(°C)

-25 ~ +70

Relative Humidity

0 to 95% (non-condensing)

Dimension(mm)

190X100X50

Weight(g)

370
