LC SM 45/90 degree connector

Details

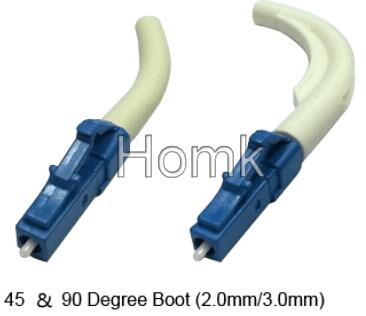

LC SM 45/90 degree connector


Homk provides an extensive line of fiber optic connectors / adapters that offer superior low loss performance with very high repeatability. like SC Fiber Optic connectors / adapters , LC Fiber Optic connectors / adapters , FC Fiber Optic connectors/adapters , ST Fiber Opitc connectors / adapters , MU Fiber Optic connectors / adapters , MTRJ Fiber Optic connectors / adapters , E2000 Fiber Optic connectors / adapters , D4 Fiber Optic connectors / adapters ,LX.5 Fiber Optic connectors / adapters



Specifications

1.SM MM Ferrule

2.45 90 degree boot

3.0.9 / 2.0 / 3.0mm Boot

4.Blue Beige Green Red Black White Boot

5.RoHS, SGS Complia



Fetures

Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC

Superior Quality Standard PC/UPC/APC Polishing

Customer Defined Specifications

RoHS Compliance

Environmental Stable

 Low Insertion Loss & back Reflection



Applications

CATV Networks

Telecommunication Networks

Local Area Networks

FTTH and FTTx

Active Device Termination

Testing Instruments



SPECIFICATIONS



Single mode

Multimode

Insertion Loss

≤0.20dB

≤0.30dB

Return Loss

PC ≥50 dB APC ≥60 dB



Durability

≤0.2 dB typical change, 1000 matings

Operating Temperature

-40 to + 85°C

-40 to + 85°C

Ferrule Spec



125.0+1/-0μm, Concentricity: ≤1.0μm

125μm, Concentricity: ≤3μm

125.3+1/-0μm, Concentricity: ≤1.0μm

127μm, Concentricity: ≤3μm

125.5+1/-0μm, Concentricity: ≤1.0μm

128μm, Concentricity: ≤3μm

126.0+1/-0μm, Concentricity: ≤1.0μm





Parameter
Unit
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU
MTRJ
E2000
SM
MM
SM
MM
SM
PC
UPC
APC
PC
PC
UPC
PC
PC
APC
Insertion Loss (Typical)
dB
≤0.3
≤0.2
≤0.3
≤0.2
≤0.3
≤0.2
≤0.2
≤0.3
≤0.3
Return Loss
dB
≥45
≥50
≥60
≥30
≥45
≥50
≥35
≥55
≥75
Exchangeability
dB
≤0.2
≤0.2
≤0.2
Repeatability
dB
≤0.2
≤0.2
≤0.2
Durability
Time
>1000
>1000
>1000
Operating Temperature
°C
-40~75
-40~75
-40~75
Storage Temperature
°C
-45~85
-45~85
-45~85
