Details

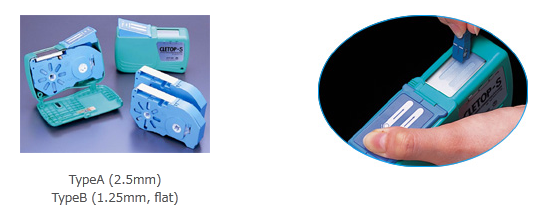

NTT CLETOP-S reel type fiber cleaner box
Easy to replace tape cartridge
The tape can be replaced very easily by a "drop-in" cartridge.
One push operation
Available for both left hand and right handed operators.
Anti-static propeties
Has excellent anti-static properties for static sensitive applications and can avoid reattchment of dust to the ferrule after cleaning.
Specifications
| Ferrule | φ2.5mm | φ1.25mm |
|---|---|---|
| Type | Type A | Type B |
| Part No. | 14110501 | 14110601 |
| Shape of rubber pad | ||
| Cleans per cartridge | more than 400 times | more than 400 times |
| Connectots cleande | SC, SC2, FC, ST, DIN, D4 | MU, LC, MT, MPO, MT-RJ without pins, Biconic |
| Dimension W × H × D mm | 125 × 85 × 35 | |
| Weight (g) | 150 | 150 |
| Packaging | 1 | 1 |
| Remarks | - | - |
| Consumables | Replacement cartridge blue (6 pcs/set) | Replacement cartridge white (6 pcs/set) |
|---|---|---|
| Part No. of cosumable | 14110700 | 14110710 |
Notice1:Please do not use this product for other purposes than cleaning ferrule end-faces.
Notice2:The cleaning perforrmance may change depending upon the environment and contamination types.
