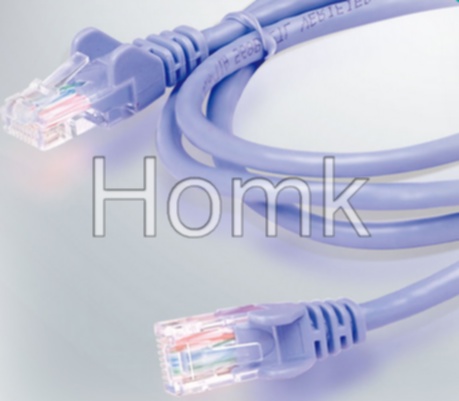

Purple Fiber Optic Network Patch Cord cat6

Details

Purple Fiber Optic Network Patch Cord cat6


Product Description

Product Name
SHIELDED TWISTED CAT6A SFTP NETWORK INSTALLATION CABLE

Inner Conductor
Material
Bare Copper Pass FLUKE Test
Diameter
0.58mm ± 0.01mm ( 23AWG )


Insulation ( Dielectric )
Material
Skin Foam PE ( Polyethylene )
Thickness
≥ 0.28mm
Diameter
1.35mm ± 0.02mm

Drain Wire
Material
Tinned Copper/ Bare Copper
Diameter
0.5mm ± 0.01mm

Shielded Layer
First Layer
Aluminum Foil Per Pair
Second Layer
AL-MA Alloy Braid


Twisted Pair


N/A
Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown


Outer Jacket
Material
LSZH
Thickness
≥ 0.66mm
Nominal O.D
7.80mm ± 0.10mm
Reference Standard
Category 7 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature
-20℃ to +70℃
Supports Transmission
Digital and analogue voice, data and video signal
