Shenzhen Homk Telecom Tech Co., Ltd.

SC 2.0mm Hollow Fiber Connector Boot

  • Model No.: SC 2.0mm Hollow Fiber Connector Boot
  • Products Category : Fiber Connector Boot
  • Price : SC 2.0mm Hollow Fiber Connector Boot
Details

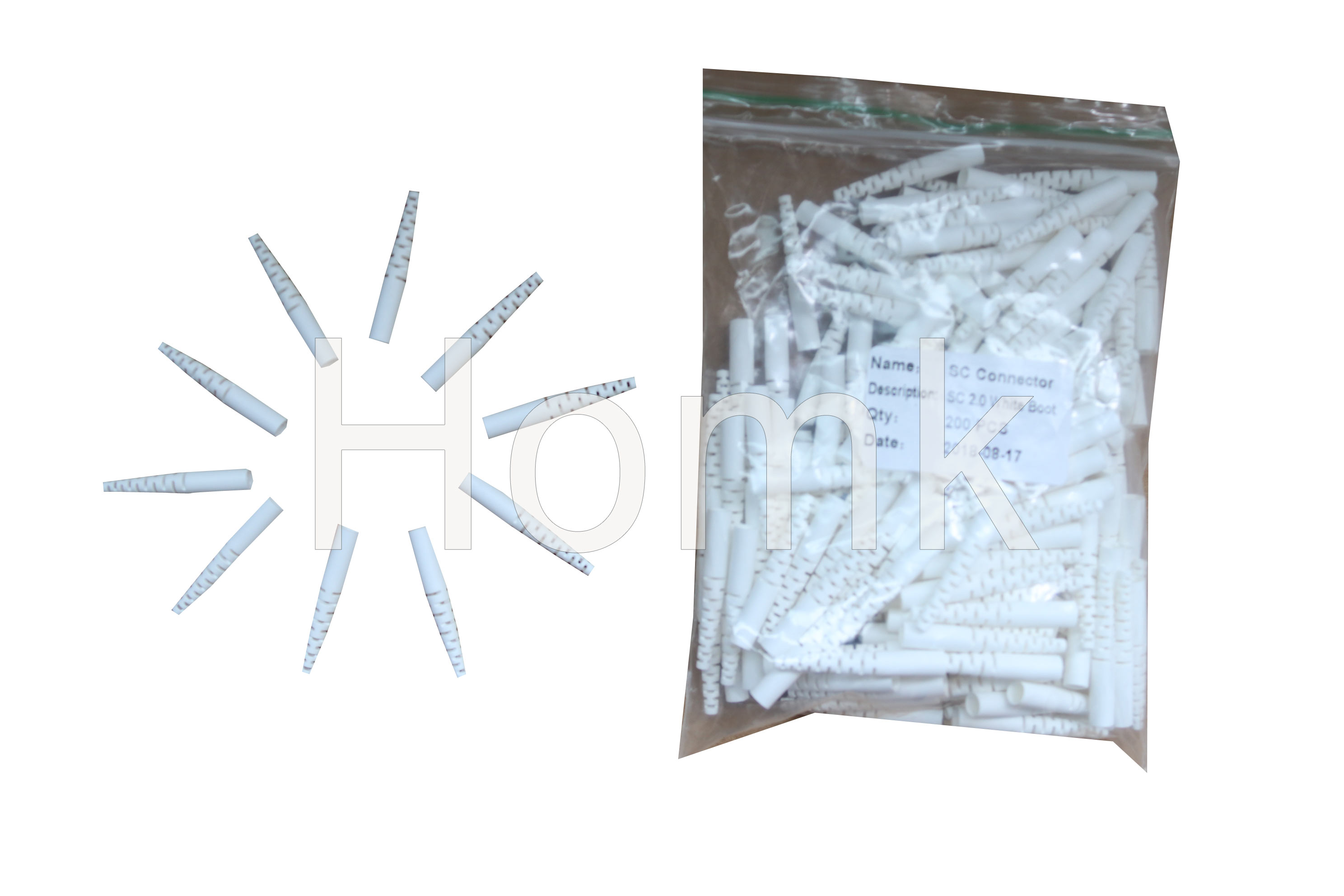

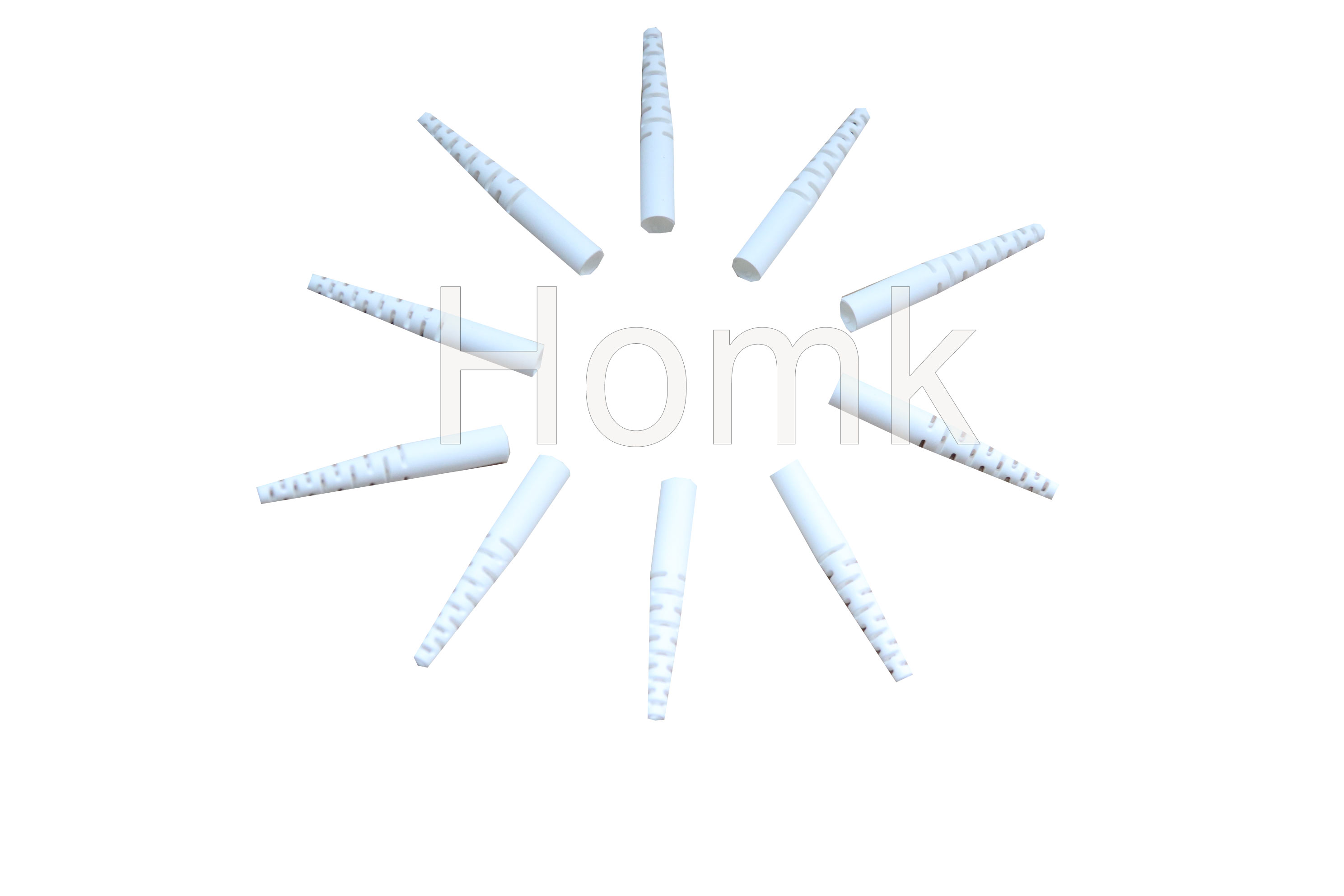

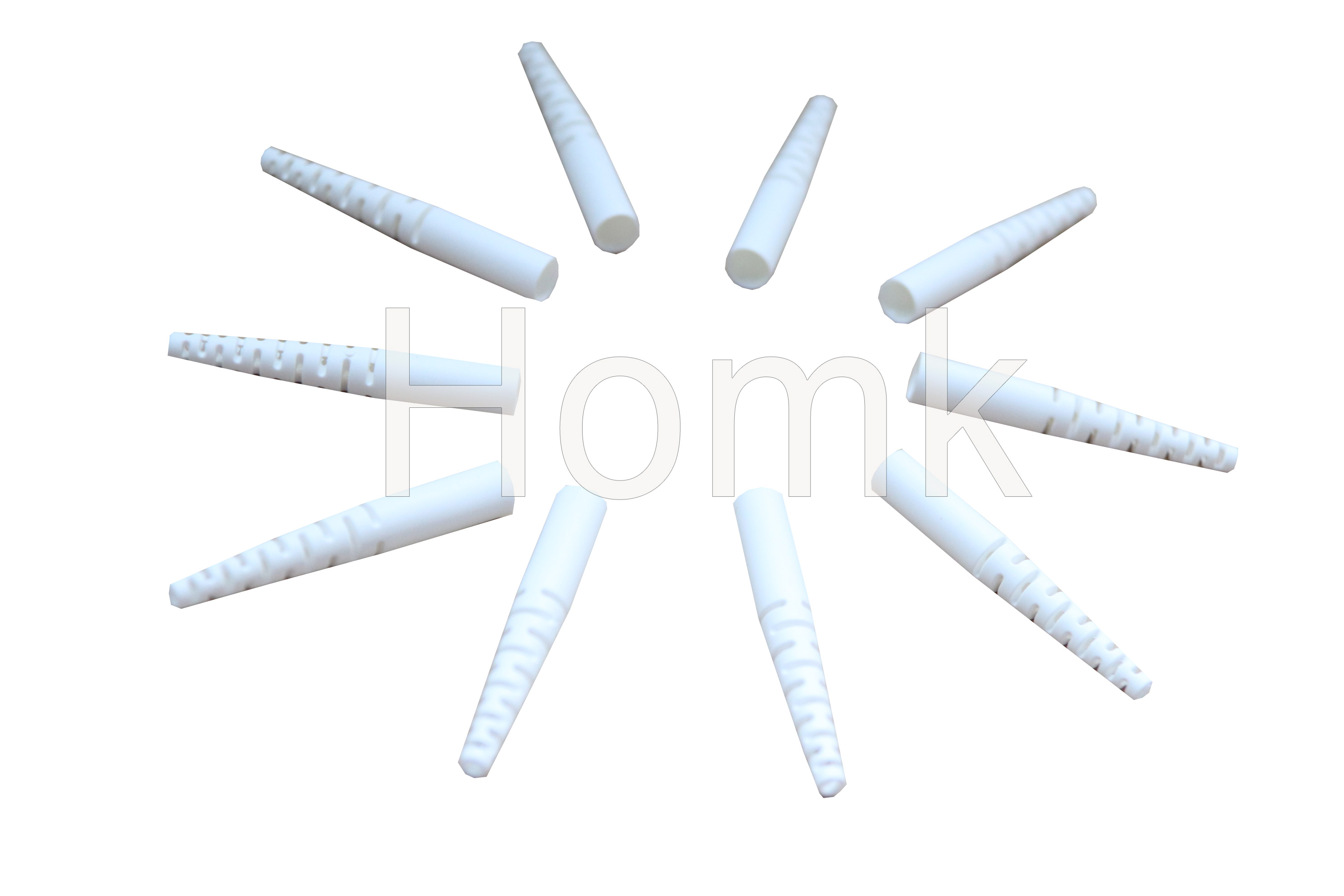

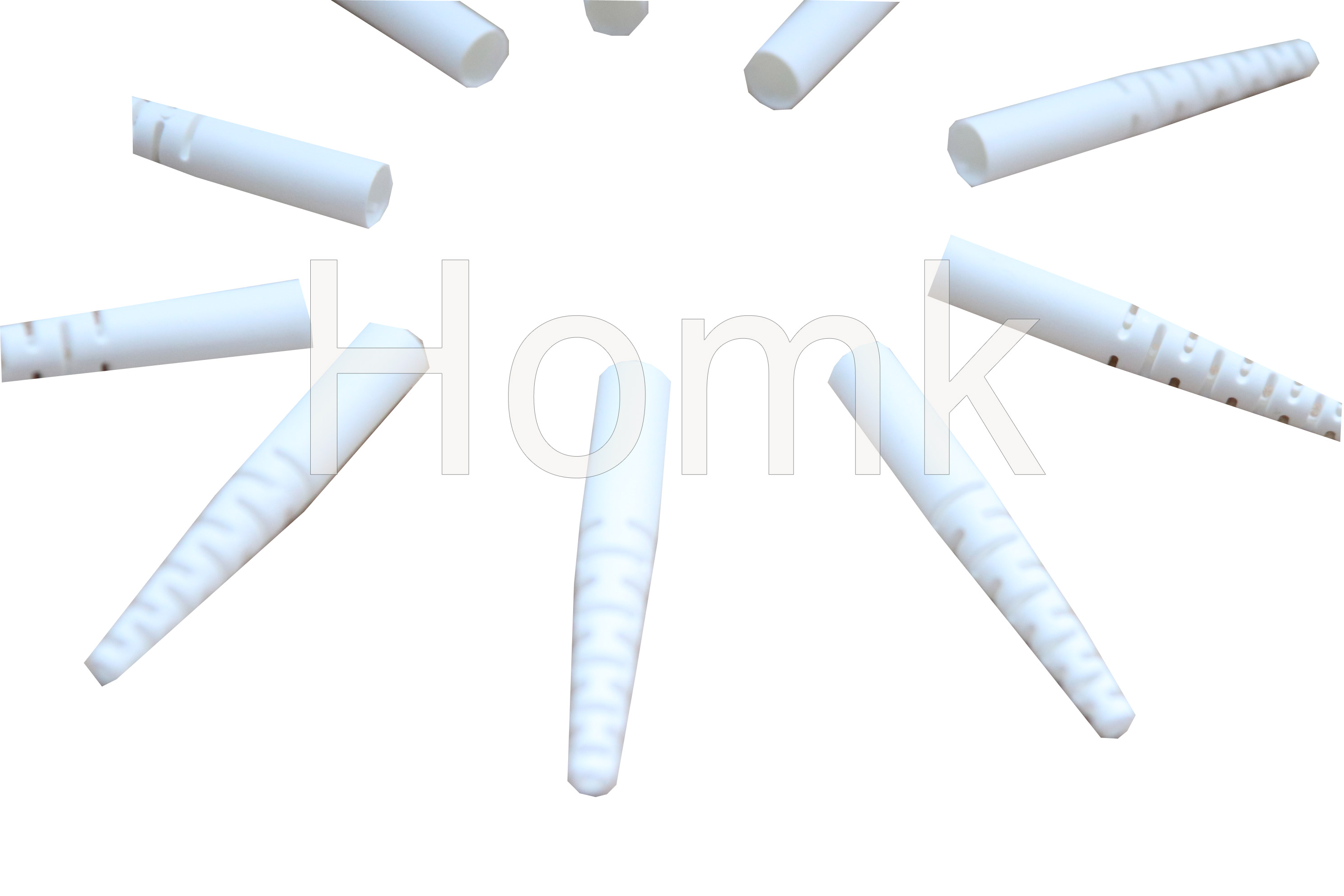

SC 2.0mm Hollow Fiber Connector Boot


Specifications
Insertion Loss; Single mode<=0.2dB & Multimode<=0.3dB
Return Loss; PC>=50dB, UPC>=55dB & APC>=65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature; -40 to 80

Ferrule Hole Sizes;
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

AVAILABILITY
-The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece.
-Clips are available for SC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors

GST  Company with own injection workshop, press workshop, specializing in  fiber optic connector and connector kits produce and export.
Main type
SC/PC, SC/APC, FC/PC, LC/PC, ST/PC, FC/APC
3.0MM, 2.0MM, 0.9MM,
Singlemode, multimode available

ItemLC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
TypeMulti-ModeSingle-Mode
Light CharacteristicOperating Wavelength850nm& 1300nm1310nm & 1550nm
Typical Insertion Loss0.2dB & 0.2dB0.2dB & 0.2dB
Mechanical TestingRepeatability&le; 0.2dB
Exchange&le; 0.2dB
Durability> 1000 (Times)
TemperatureStorage Temperature25 ~+85
Operating Temperature25 ~+85
Length, Color, Out-Diameter, Fiber countsAccording to the customers' requirement
