SC APC Fiber Optic Fast Connector 0.9mm

Details

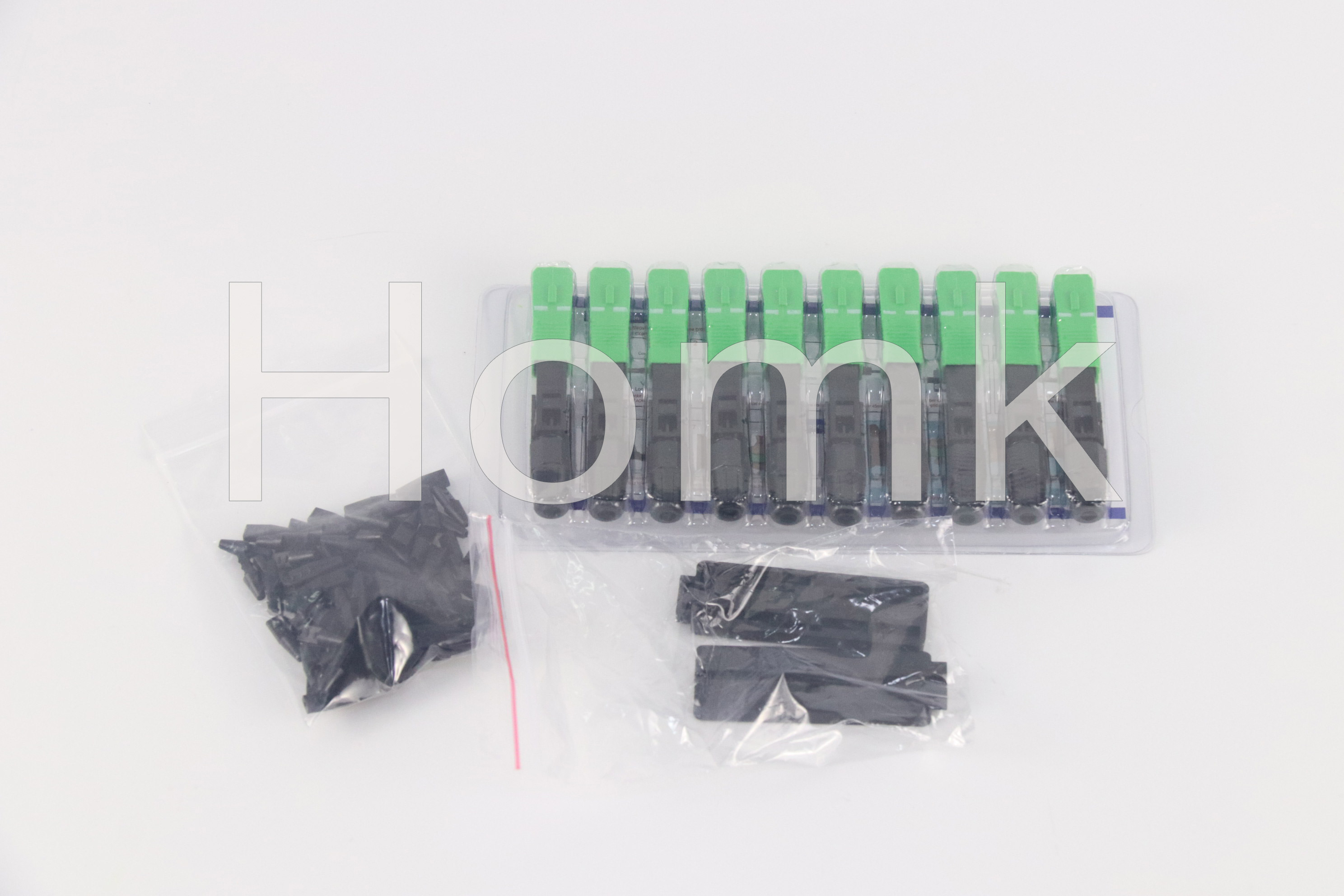

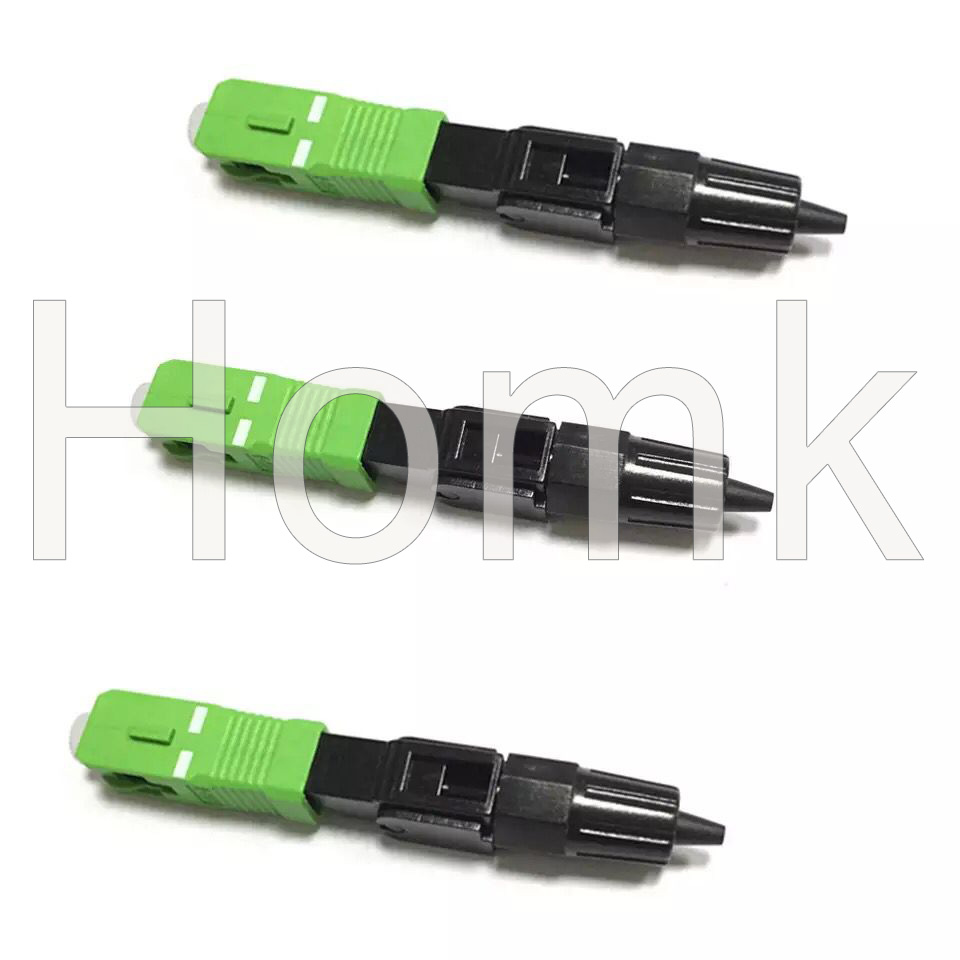

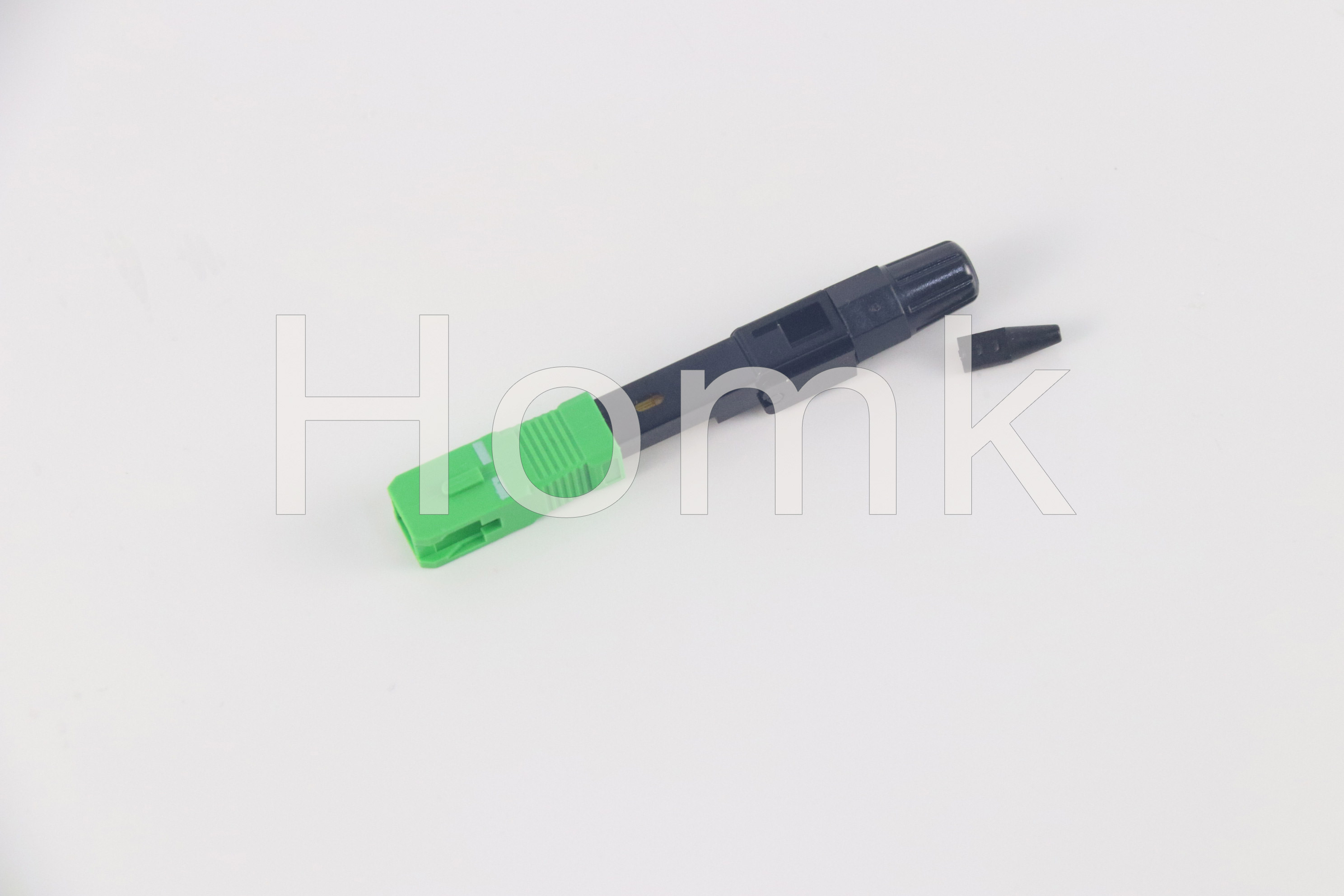

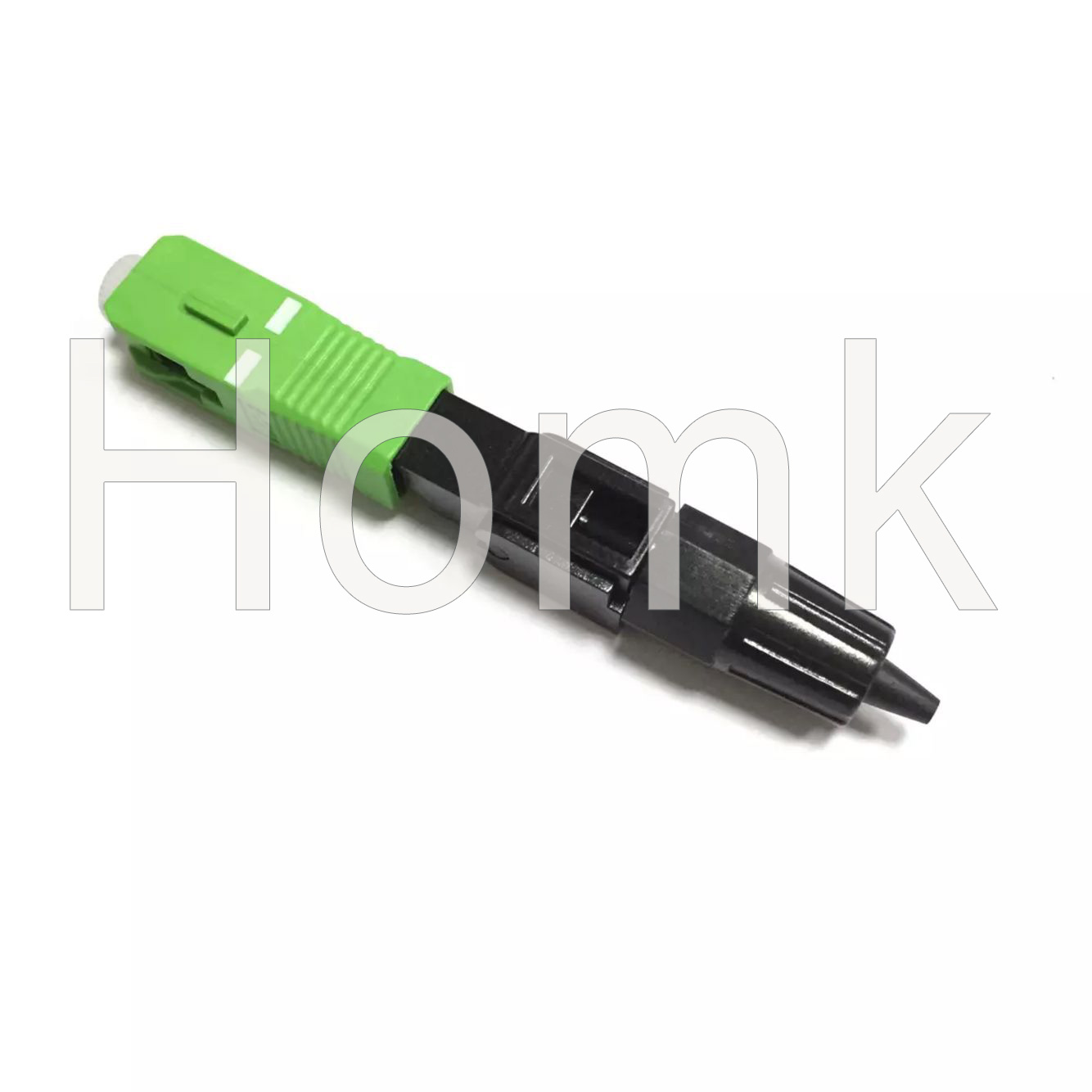

SC APC Fiber Optic Fast Connector 0.9mm


Introduction:

SC/APC Fast Field Assembly Fusion Splice fiber optical connector has easy assembly andexcellent stability
features adhesives to facilitate the termination of the fiber in the fieldandworking hardto secure space
environment alone can access for assembling like pole, manholes.
In addition, it can be reduced the defect rate dramatically by worker's connection error, due to
being able to reconnected.



Features:


1) Factory-installed fiber stub.



2) No epoxy and polishing required, No special tools needed when installed.



3) Allows up to three re-termination result.



4) Easily installed, Quick and easy fiber termination in the field.



5) Only 30 seconds needed to learn the process of installation and making.



6) Cost effective, Warranty: One year.



7) Fast connecting and repeat, No special tools needed when installed.



8) Can be made on-site without splicing connectors.



9) Eliminates cable excess length and pigtail splice storage.



10) Can be intalled and maked repeatedly thus avoiding loss.



 .

Application:



Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication



Specification:





Item

SC Fast connector

Item No.

SC/UPC


Technical      parameter

Suited cable

outer diameter

2*0.9mm

Insertion Loss

Average value≤0.25dB    Max value≤0.5dB

Return Loss

Max value≥40dB(UPC)  ≥55dB(APC)

Repetitive Assemble

Assemble times:5

Duration Time

NOM≤90S



Vibration

Frequency:10-50Hz      Sweep Fr:45/min

Amplitude:0.75mm Single-amplitude

Tensile

0.125mm bare fiber 4N,Off-line monitor optic performance

0.25mm fiber 4N,Off-line monitor optic performance

0.9mm fiber 10N,On-line monitor optic performance

Machinery durability

0.25 Db MAX. 0.15 Db MAX

Repetition

Insert and Draw frequency:10

Remark

Embedded optical fiber type structure;

Pressure parts adopt new unique structure design,

Without the glue and grinding, low insertion loss, high return loss, high and low temperature tested, Operation is easy;

Widely used in opening the optical fiber terminal into FTTH.
