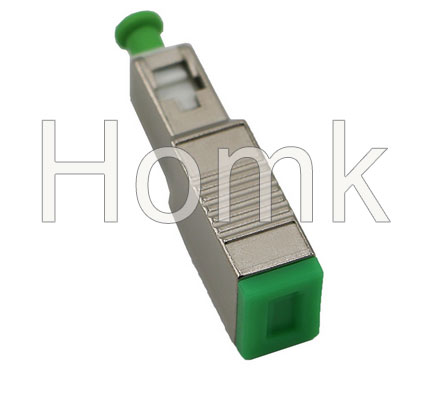

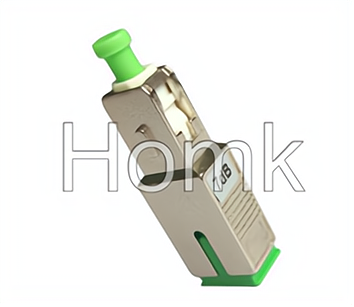

SC/APC Male to Female Attenuator 7dB

Details

SC/APC Male to Female Attenuator 7dB


Specifications:

Male to Female  Fiber Optical Attenuator
1-30dB is available
Good quality
Best price
Fast delivery


Features:

High power 1W continuous operation tested over 1000 hours
Precise attenuation
Return loss UPC >50 dB APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB


Applications:

Fiber optic systems
CATV and telecommunication systems
Receiver padding for optical receiver protection
Optical power equalization
Increasing dynamic range for apparatus

Parameter table: Description

Unit

Condition

Values

Return Loss

dB

PC

≥50

dB

APC

≥60

Attenuation Accuracy

dB

1dB-10dB

<0.5

dB

11dB-20dB

<1

Operating Wavelength

nm

SM

1200,1600 or 1310,1550

nm

MM

850, 1300

Polarization Dependent Loss

dB

/

&le;0.2

Maximum Input Power

mW

/

200

Operating Temperature

&deg;C

/


-40 to +80
