Shenzhen Homk Telecom Tech Co., Ltd.

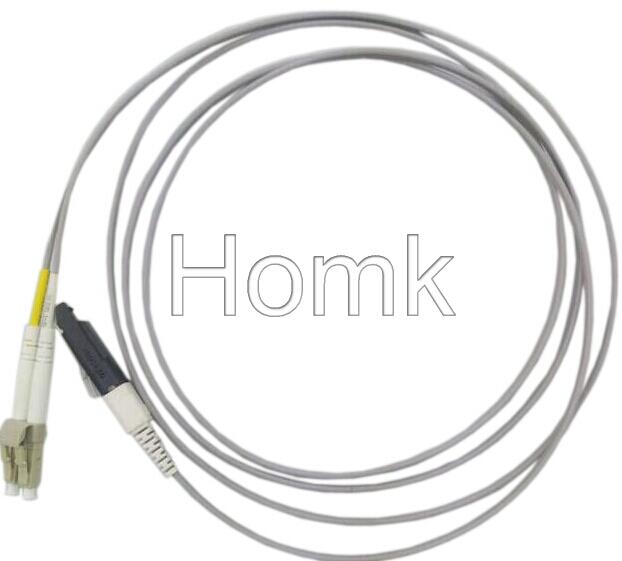

VF45-LC Patch Cord

Details

VF45-LC Patch Cord


Feature:

Good durability

Good exchangeability

High temperature stability

Low insertion loss and back reflection loss

Superior Quality Standard PC/UPC/APC Polishing

Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Telcordia’s GR-326-Core, IEC Standard

Green Production, RoHS Standard
Specification:

Descriptions

SM(PC)

SM(UPC)

SM(APC)

MM(PC)

Insertion loss

<0.3dB

&le;0.2dB

<0.3dB

<0.3dB

Return loss

&ge;50dB

&ge;50dB

&ge;65dB

&ge;35dB

Repeatability

&le;0.1

&le;0.1

&le;0.1

&le;0.1

Durability

<0.1dB typical change,1000 mating

Interchangeability

&le;0.2dB

Vibration

&le;0.2dB

Operating Temperature

- 20&deg;C ~ + 70&deg;C

Storage Temperature

- 40&deg;C ~ + 80&deg;C

Cable Diameter

3.0mm, 2.0mm, 0.9mm
