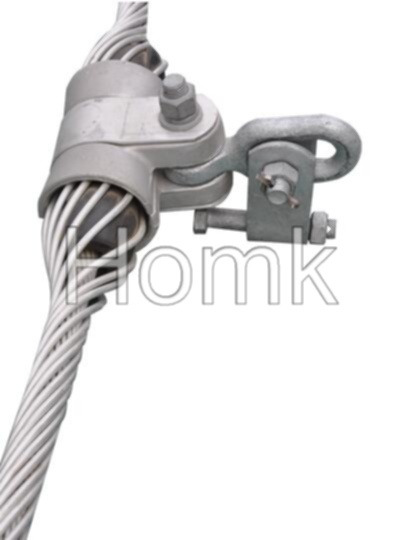

Aluminum clad steel preformed suspension clamp
| Model | LJG/T1179-1983 | Length of cable clamp(mm) | weight of cable clamp(KG) | ||||
Nominal cross-section mm² | OD mm | Single vibration damper | Double vibration damper | Single vibration damper | Double vibration damper | ||
| CL-95 | CL-95S | 95 | 12.48 | 1020 | 1350 | 1.1 | 2.0 |
| CL-120 | CL-120S | 120 | 14.25 | 1120 | 1470 | 1.4 | 2.4 |
| CL-150 | CL-150S | 150 | 15.75 | 1270 | 1680 | 1.5 | 2.4 |
| CL-185 | CL-185S | 185 | 17.50 | 1380 | 1830 | 1.8 | 3.0 |
| CL-210 | CL-210S | 210 | 18.75 | 1430 | 1820 | 5.9 | 3.2 |
| CL-240 | CL-240S | 240 | 20.00 | 1530 | 1980 | 2 | 4.2 |
| CL-300 | CL-300S | 300 | 22.40 | 1660 | 2080 | 3.1 | 4.8 |
| CL-400 | CL-400S | 400 | 25.90 | 2040 | 2740 | 5.5 | 8.8 |
| CL-500 | CL-500S | 500 | 29.12 | 2090 | 2740 | 5.9 | 9.4 |
| CL-630 | CL-630S | 630 | 32.67 | 2240 | 2970 | 8.8 | 13.6 |
| CL-800 | CL-800S | 800 | 36.90 | 2240 | 3050 | 9.7 | 15.2 |
