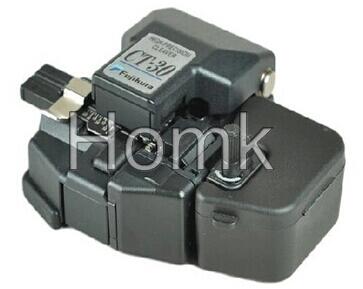

CT-30 Fiber Cleaver
The Fujikura CT-30 Fiber Cleaver sets the standard for portable, reliable and ease of use. Available for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30 Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.
Sprcification:
Stable operation with Multi-Action process
♦Typical cleave angle: 90°± 0.5°
♦ Compact & handy outfit design
♦ High precision cleaving blade with 16 cleave spots
♦ Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦ Built-in maintenance tool attached: on the bottom
Specifications:
Applicable fibers | Silica optical fiber |
Bare fiber diameter | 125mm |
Cleaving angle | 0.5 degrees with single fiber |
Blade life | 48,000 fibers (1,000 fibers x 3 height x 16 positions) |
Blade positions | 3 height and 16 rotating positions |
Dimensions | 102W x 82D x 46H (mm) with FC-02 and FDB-03 |
Weight | 210g with FC-02 and FDB-03 |
Variattion:
Model | Cladding diameter | Fiber count | Cleaving length | Fiber placing |
CT-30 | 125mm | Up to 12 | 10mm | Fiber holder |
CT-30A | 125mm | Single | 6 to 20mm | Fiber plate (AD-30A) |
CT-30B | 125mm | Single | 16mm | Fiber plate (AD-30B)
|
