Fiber Cable(Flat Twin GJFJV)

Details

Fiber Cable(Flat Twin GJFJV)

Product Name:Fiber Cable

Model:Flat Twin Duplex Military Tactical GJFJV



Fiber Cable Application:

☆.Adopted to indoor distribution..
☆.As pigtail of communication equipment.
☆.The fiber cable is suitable for communication equipment served.
☆.Fiber cable can be installed conveniently and perated simply.

The fiber cable Characteristics:

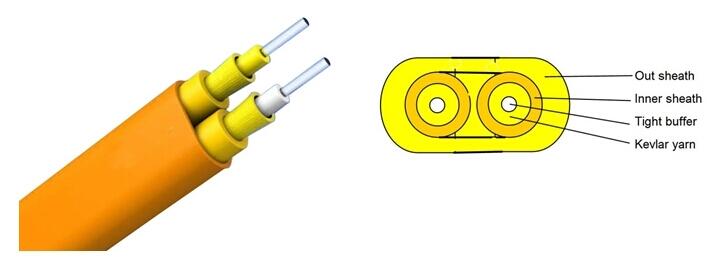

☆.Two single-fiber as basic unit .flat twin configuration.
☆.Single-cable with independent strength member.
☆.Tight buffer.(900um or 600um)

 The fiber cable Technical Parameters:

Out   sheath

Diameter

Tight   buffer

Diameter

Weight

Minimum   allowable Tensile Strength
  (N)

minimum   allowable Crush Load
  (N/100mm)

Minimum   Bending Radius
  (MM)

Storage
  temperature

(MM)

(MM)

(KG)

short   term

long   term

short   term

long   term

short   term

long   term

()

3.0X5.0

1.8

56.00

800

300

1000

500

20D

10D

-20+60

3.2X5.6

2.0

68.00

800

300

1000

500

20D

10D

-20+60

5.0X8.0

2.8

87.00

800

300

1000

500

20D

10D

-20+60

Indoor   Fiber Cable Characteristics:

Fiber   Sort

Multimode

G.651

A1a:50/125

Graded-index   fiber

A1b:62.5/125

Singlemode

G.652(ABC)

B1.1:Conventional   fiber

G.652D

B2:   Zero  dispersion shifted

G.655

B1.2   :Cut-off wavelength shifted

G.657(A1A2 B3)

B4: Main   technical data for positive
    dispersion shifted single-mode fiber
