Glue Dispensing Machine(HK-98Y)

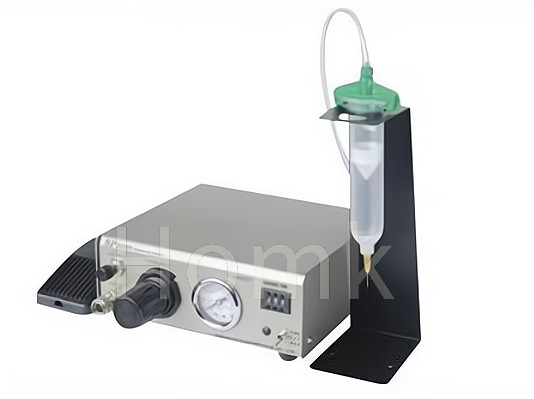

Glue Dispensing Machine HK-98Y

The glue dispensing machine with time control, to push the liquid Penumatically, the glue dispensing machine controlled by timer, to be sure the same dispensing drops and dispensing cycle time, regulated.
The air pressure with suitable tip at your equipments of the different Liquids as glues, greases, solder plasma. Glue dispensing machine will be applied for 10 types of steel tips and 5 types of plastic tips for Various customers' needs.

Glue dispensing machien data
1. Power switch: Turns unit on and off. Indicate "ON"position.
2. Air pressure regulator/gauge: Controls and indicates air pressure to the dispense circuit(the handle of regulator shuld be pulled out to adjust).
3. Mode switch: Places the dispense circuit in automatic or manual shot mode.
4. Timer control: Adjust the glue dispensing mahcine is shot of the auto dispense mode.

5. Vacuum control: Adjust the glue dispensing machine intensity of "suck back"vacuumapplied to the dispense circuit.
6. Dispense outlet: Provide a quick connect receptacle for dispense air circuit.
7. Socket of foot-switch: Activates the dispense circuit.
8. Air-in tube: The glue dispensing machine has high-pressured air input.
9. Dispensing control: Four grades for the dispensing cycle time.

 Technical data
Timer Programmable0.01-1S; 0.1-10s
 0.2-20S; 0.3-30S
Cycle initiationMaintained or momentary
Repeat tolerance± 0.5%
Voltage input220-240V 50Hz AC
Internal voltage24V  DC
Minimun Deposit0.01ml
Air input2.5-7bar(35-100psi)
Air output0.1-5.5 bar(1-78psi)
