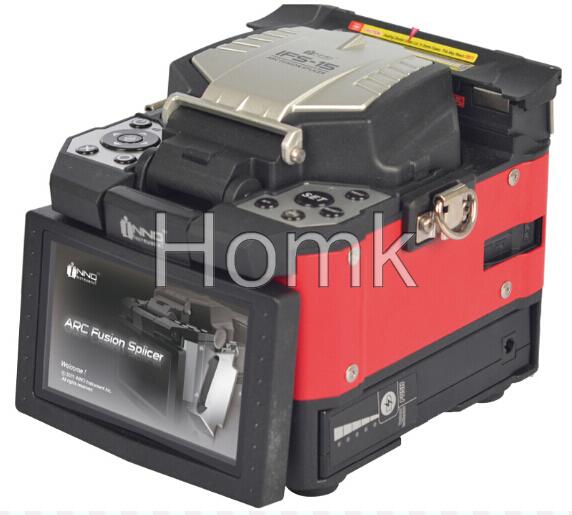

INNO IFS-15 fusion splicer

Details

INNO IFS-15 fusion splicer


Features:

  • 2.8KGweight, light and handy, user friendly, easy to operate

  • Very fast splicing time, only 9 seconds

  • Operates in Bi-Directional view.

  • Real-time calibration of arc-discharge

  • Large capacity Lithium-Ion Battery

  • Friendly GUI, easy to operate

  • Artificial technology, auto discriminate fiber and auto select fusion mode

  • Auto compensate arc-discharge according to temperature and air pressure

  • USB master port, easy to upgrade software

  • Entire environmental protection design conforms to the ROHS standard

  • High density windproof design, newest fusion technology (High: 168mm, wide: 145mm)

TWO-WAY Multi-Task Support:

180º switching monitor application to match user’s work preference. One can choose his work environment by changing monitor front or back.



Specifcitions:



Splicing MethodCore alignment
Applicable fiberSM(ITU-TG.652),MM(ITU-TG.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Average lossSM(0.02dB),MM(0.01 dB),DS(0.04 dB),NZDS(0.04 dB)
Return loss>>60 dB
Splice timeSM fusion average 9s
Cleaved lengthThe fiber which coat-diameter is less than 0.25mm:8-16mm
The fiber which coat-diameter is lager than 0.25mmleast 16mm
Operating environmentelevation 0-5000meter,95% relative humidity,-10—50C
MagnificationXY style: 150power
X/Y :300 power
Monitor2CCD camera system,5inch LCD
Splice Programs40 user mode,10 factory preset mode
Coating Diameter100-1000um
Clading Diameter80-150um
Splice memoryCan save 2000 record
Fiber DisplayX/Y or XY,single X,Y
Proof test2N(standard)
Heating programsPreset 10kind heating mode
Heating timeFP-03 typical heating time 30s
Protection sleeve60mm,40mm
BatteryTypical fusion 350 times
Power supplyAC 100-240V input or, DC 12-15V
Data outputUSB master device and AV
Wind protectionThe max wind speed 15m/s
size168x145x160mm
weight2.8Kg
