Shenzhen Homk Telecom Tech Co., Ltd.

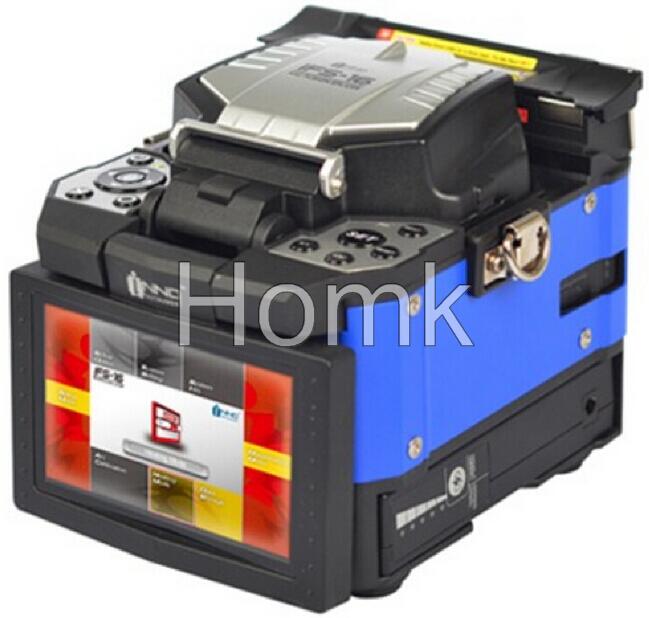

INNO IFS-16 fusion splicer

Details

INNO IFS-16 fusion splicer


Features:

  • 2.8KGweight, light and handy, user friendly, easy to operate

  • Very fast splicing time, only 9 seconds

  • Operates in Bi-Directional view.

  • Real-time calibration of arc-discharge

  • Large capacity Lithium-Ion Battery

  • Friendly GUI, easy to operate

  • Artificial technology, auto discriminate fiber and auto select fusion mode

  • Auto compensate arc-discharge according to temperature and air pressure

  • USB master port, easy to upgrade software

  • Entire environmental protection design conforms to the ROHS standard

  • High density windproof design, newest fusion technology (High: 168mm, wide: 145mm



Specifications





IFS-16 FTTx Fiber Master The IFS-16 core-alignment fusion splicer with the new (DACAS) Digital Analysis Core Alignment System is one of the most dependable splicer on the market. The IFS-16 has a user friendly, intuitive GUI (Graphical User Interface) with a 4.3 inch high-resolution color LCD screen that is easy to see and use. With a compact size of the fusion splicer

(155mm*130mm*137mm) and the portable carrying case, the IFS-16 FTTH Master brings much more convenience for customers who works in the FTTx field. Besides the compact size, the most significant innovation is the compatibility. The IFS-16 is compatible with being widely used fibers and cables, even for splice-on connector. It combines the functions of both splicing and heating for those cables which are popular in FTTx: 250μm fiber, 900μm fiber, flat cable, fiber jumper and splice-on connector.



The IFS-16 includes:

  • IFS-16 Core-Alignment Fusion Splicer

  • VF-16 High-Precision Cleaver

  • CG-22 Cooling Tray

  • DC300 Indoor Cable Stripper

  • PT-1 Protector

  • LBT-20 Battery Pack

  • ACC-25 Power Cable

  • JS-126300-X AC Adapter

  • E-27 Electrodes

  • CD

  • HCK-1 Working Table

  • NBX-35 HCK Carrying Case

  • CJ-11 Car Charger 12V
