INNO View5 fusion splicer

Details

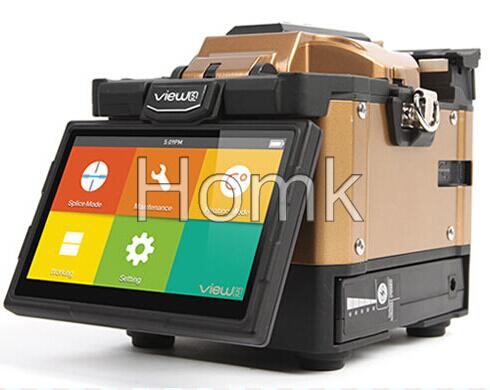

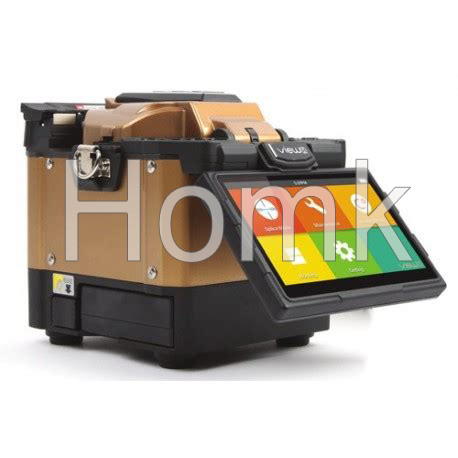

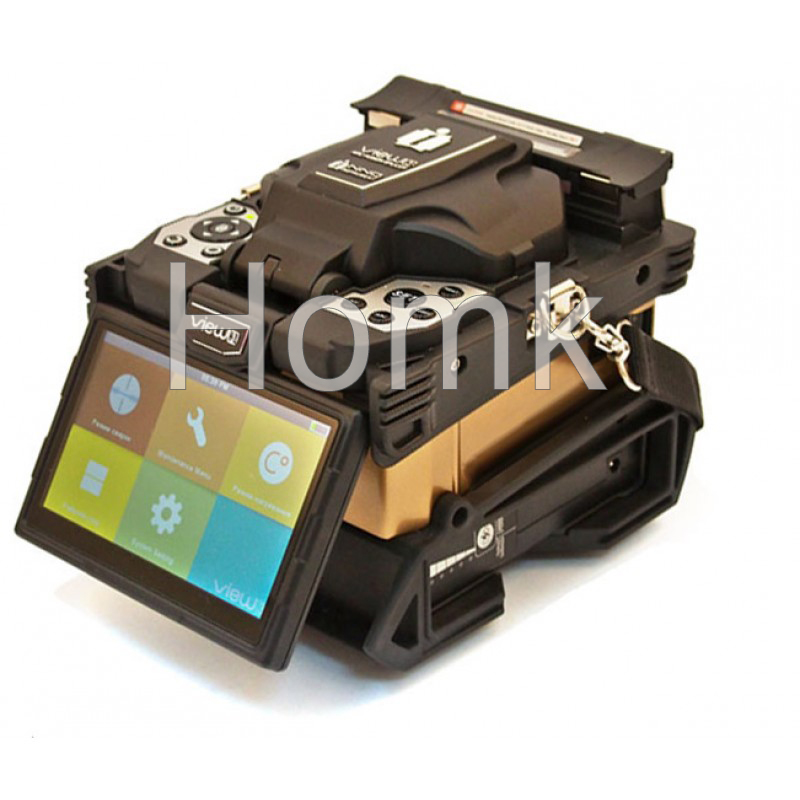

INNO View5 fusion splicer


Model :View 5

  • Dimension :143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)

  • Weight : 2.31KG (with battery) / 1.95KG (without battery)

  • Number of Fiber :Single

  • Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

  • Compatible Fiber / Cable :0.25~3.0 mm / Indoor Cable

  • Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

  • Splicing Mode :Preset 7 modes / Max 128 modes

  • Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)

  • Return Loss :>>60dB

  • Lighting :3 White LEDs

  • Splicing Time Auto mode : 9 sec / Quick mode : 7 sec

  • Estimated Splice Loss :Available

  • Protection Sleeve Length: 20~60 mm

  • Heating Time Typical heating time: 35 sec

  • Results Storage :The last 2000 results

  • Tension Test :1.96~2.25N

  • Operating Condition Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s

  • Storage Condition : 0~95% relative humidity, -40~80°C

  • Display: 90° bi-directional view, 5.0” Color High Resolution Display

  • Fiber View & Magnification :X, Y, XY, X/Y : 520X Magnification

  • Power Supply :AC Input 100-240V, DC Input 9-14V

  • No. of Splice / Heating with Battery :4200mAh Battery Capacity, Typical 170 times (Splice+Heat)

  • Operating Methods :Button / Touch screen

  • Automatic Calibration : Automatic arc calibration by air pressure and temperature

  • Electrode Life : 3500 arcs, can be extended by using an electrode grinder

  • Terminal USB : 2.0 / MINI USB / HDMI

Specification:



Model

View 5

Dimension

147H x 130W x 155D mm

Weight

2.21KG (with battery) / 1.85KG (without battery)

Number of Fiber

Single

Applicable Fibers

SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Compatible Fiber / Cable

0.25~3.0 mm / Indoor Cable

Cleaved Length

Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

Cladding Diameter

80~150 μm

Splicing Mode

Max 128 modes

Heating Mode

Max 32 modes

Typical Splice Loss

SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB(ITU-T Standard)

Return Loss

>> 60 dB

Lighting

3 White LEDs

Splicing Time

Quick mode : 7 sec / Auto mode : 9 sec

Estimated Splice Loss

Available

Protection Sleeve Length

20~60 mm

Heating Time

FP-03 typical heating time: 13 sec

Results Storage

The last 2000 results

Tension Test

1.96~2.25N

Operating Condition

Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s

Storage Condition

0~95% relative humidity, -40~80°C

Display

90° bi-directional view, 5.0” Color High Resolution Display

Fiber View & Magnification

X, Y, XY, X/Y : 520X Magnification

Power Supply

AC Input 100-240V, DC Input 9-14V

No. of Splice / Heating with Battery

4200mAh Battery Capacity, Typical 170 times (Splice+Heat)

Operating Methods

Button / Touch screen

Automatic Calibration

Automatic arc calibration by air pressure and temperature

Electrode Life

3500 arcs, can be extended by using an electrode grinder

Terminal

USB2.0 / MINI USB
