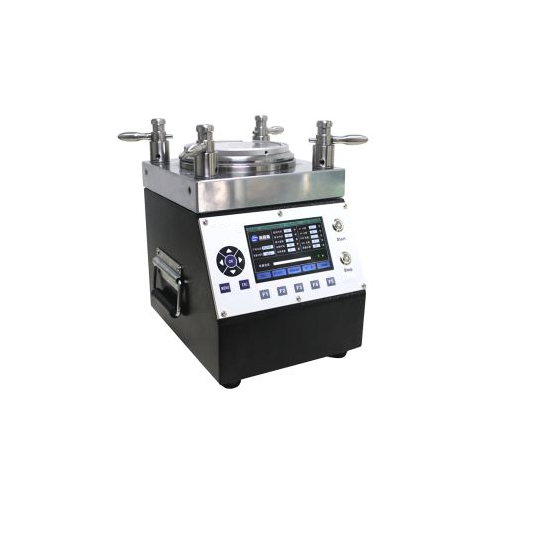

Intelligent Fiber Polishing Machine HK-30T

Details

                            HOMK 2021 NEW TYPE POLISHER 30T

The intelligent optical fiber polisher is a kind of grinder with four corners pressurized. The pressure is applied through the four corners of the grinding fixture. The pressure is realized by adjusting the spring pressure of the four pillars. There are two rotating motors installed inside, one large and one small, to control the revolution and rotation of the head respectively. External start and stop switches, with multiple function keys, can control the function of the grinder, and support the setting and saving of 30 grinding programs.


5 inch color LCD screen, simple and clear display.


The grinding process is programmable, and the grinding time is automatically compensated according to the grinding process, so as to maximize the utilization of the grinding paper, reduce the grinding cost and improve the grinding efficiency.

The counting function of programmable grinding plate can make the number of consumables and grinding discs clear on that day, which is convenient for production statistics management.

Support user-defined operation tips, such as grinding plate, grinding rubber pad, and other operation parameters, etc. when replacing the connector, employees can directly call it to facilitate their operation.

It can process various standard optical fiber connectors: FC / UPC, SC / UPC, St / UPC, LC / UPC, mu / UPC, FC / APC, SC / APC, MT-RJ, E2000, various energy optical fiber end faces, etc. It can grind up to 40 heads.

High precision mechanical fit, independent rotation and revolution compound movement, ensure the uniformity and consistency of grinding quality.


Strong waterproof performance and professional structure design ensure the safe and reliable use of the equipment.

Pressure way4 coil springInsert Loss 0.3 dB (SM)
0.2 dB (MM)
polishing capacity(max)SC, FC, ST: 20, 48 units LC: 24, 48unitsReturn Loss50 dB (PC)
60 dB (APC)
Polishing connector typeFC, SC, ST, LC, MU, MTP, MPO, MTRJ and so onRadius10~25mm
Motor speed120rpm rotation, 2rpm revolutionOffset50 μ M
Dimension230*230*255mmUnder cut50nm
Film size5' 'Repeatability  0.1dB
Weight24KGInterchangeability0.2 dB
Input voltage100-120VAC, 50/60Hz or 220-240VAC, 50/60HzWorking Situation Temperature  -10— +40º C
Polishing cycle2.83minsHeavy punch500g or 250g
Polishing chassis diameter130mm

Polishing time setting0-3min

Counterweight pressure  2.1~3.6kgf/cm

Time Range0-300S

Polishing Time 2 min. (quick assembly type)

 3-4 min. (standard connectors)
Pressure Range0~5kg
Precession Speed1.5rpm
