PDLC Waterproof Fiber Optic Connector

Details

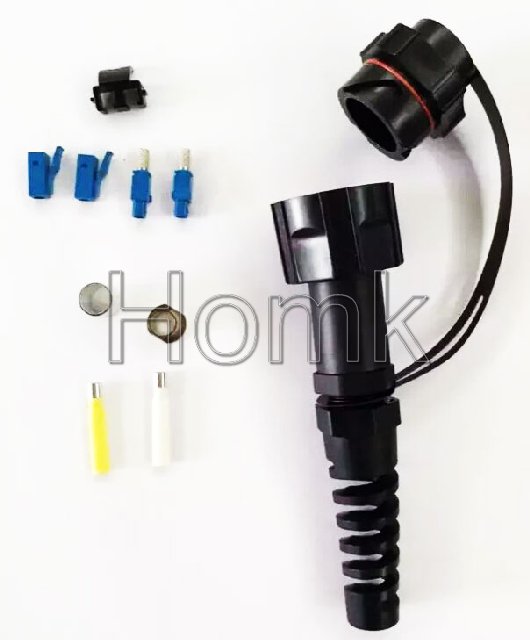

PDLC Waterproof Fiber Optic Connector

Product Description


Description


PD-LC  connector is designed to exceed the requiremnets of ODVA, the  connector  meet IP66 environmental sealing ratings and are the ideal  choice for a  low cost and easy to use solution in industrial, Fiber to  the Antenna,  or any other harsh environmental applications.The PD-LC  connector is  designed according to the IEC60603-7 interface standard,  which allows  mating to other similar mechanical locking systems.
Features
IP66 Water immersion and Dust protection for hash environment
Wide range of cables to be used, 5-7mm OD cable with duplex 2.0mm to 3.0mm jacketed subunits
Singlemode and Multimode
Intermatable to other industrial LC adapter per IEC60603-7
Simple assembly requiring no special tools
Aluminum housing, compactible design
Cost effective, time saving and eliminates the need for splicting on site
Application
Military, Oil & Gas. Broadcast & Industrial
Parameter

Inserton loss IEC6130

Singlemode

Typ.≤0.20db

98% ≤0.50db

Multimode

Typ.≤0.20db

98% ≤0.40db

Return loss

Singlemode

≥ 50db
