SC-ST fiber adapter

Details

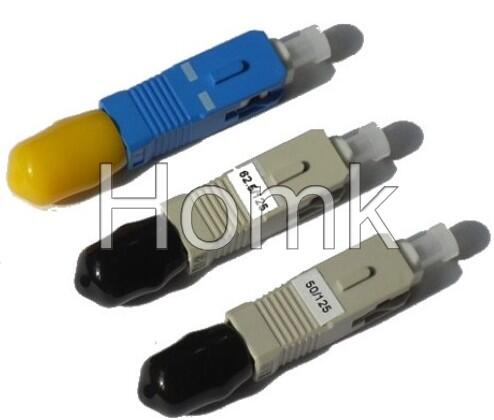

SC-ST fiber adapter


Hybrid optical adapters with male to female configuration are very useful in connecting patchcords with different connectors.

Because both a connector plug (male) and an adapter socket (female) are provided, this hybrid adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system.

It has low insertion loss and high return loss.

We provide hybrid adapters bridging popular connector types, such as FC, SC, ST and LC.



Features:

  • Insertion loss < 0.3dB
  • Return loss > 50dB (SM)
  • High repeatability
  • High environmental stability
  • Various of connector and adapter types

Specifications:

Alignment Sleeve

ZrO2

Housing Material

Zn-Alloy or Cu-Ni (metal) & Engineering Plastic Blue (plastic)

Insertion Loss

0.30dB max., 0.10dB typ

Durability

500 matings, 0.2dB max. increase

Retention Force

200~600grams

Operating Temperature

-40~+80&deg;C
