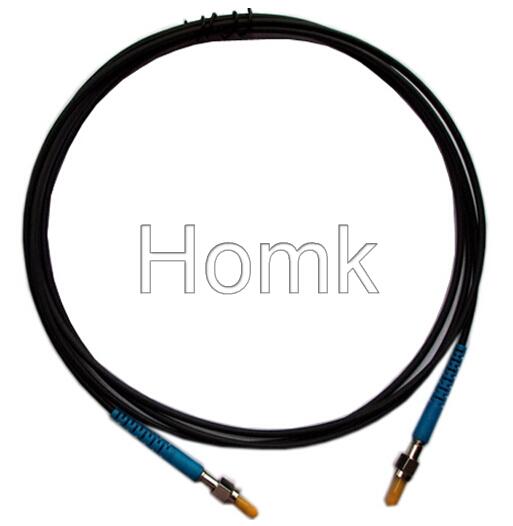

SMA UPC Patch Cord

Details

SMA UPC Patch Cord


Features:

1. Light in weight\energy saving and safe
2. High bandwidth\excellent flexibility\vibration resistance
3. Anti-electromagnetic interference\stable and reliable signal transmission
4. Heat and code resistant(-20- 70 Celsius Degrees)
5. Easy to install and connect, maintenance easily
6. Complied with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.

Parameters

Unit

Numerical value

Fiber diameter

mm

1.0  , 0.5, 0.75

Cable diameter

mm

2.2± 0.1 or 1.0± 0.05

Fiber material

---

PMMA

Jacket material

---

PE

Attenuation

dB/m

≤ 0.2

Insertion loss

dB

< 0.5

NA

---

0.5

Wavelength

nm

650

Incident angle

---

&le; 60&deg;

Bandwidth

MHz&middot; 100m

&ge; 10

Cable length

m

1~100m to order

Bend radius

---

&ge; 10 times of fiber dia.

Operating temperature

Celsius Degrees

-20~70

Storage temperature

Celsius Degree

-20~70

Refractive index

---
