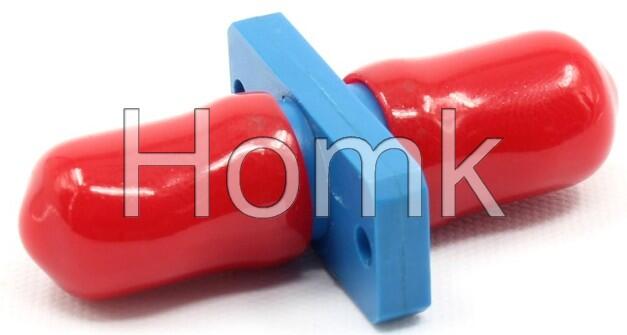

ST fiber optic adapter

Details

ST fiber optic adapter


Application

CATV

Telecommunication networks

Test equipment

Metro

Local Area Networks(LANs)

Data processing networks



Features

Low insertional loss and back reflection loss

High prcision alignment

NTT-FC compliance

Compact design

Choice of housing material and sleeve material

Nickel plated brass body

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance.

compatibility, repeatability

high precision size has good compatibility

resistance to friction ceramic casing

environmental stability good

card lock plug

provide separate ST type, SC type, FC type, LC type and so on many kinds of adapter



Specification

Insertionl loss

< 0.2db

Durability

< 0.2db typical change, 1000 time matings

Operating Temp

-40 to +85 degree



Ordering Options

Housing Shape

Sleeve Material

Application

1. Square

2. Small-D

3. Big-D

1. Zirconia

2. PB

  1. FC/PC

  2. FC/APC
