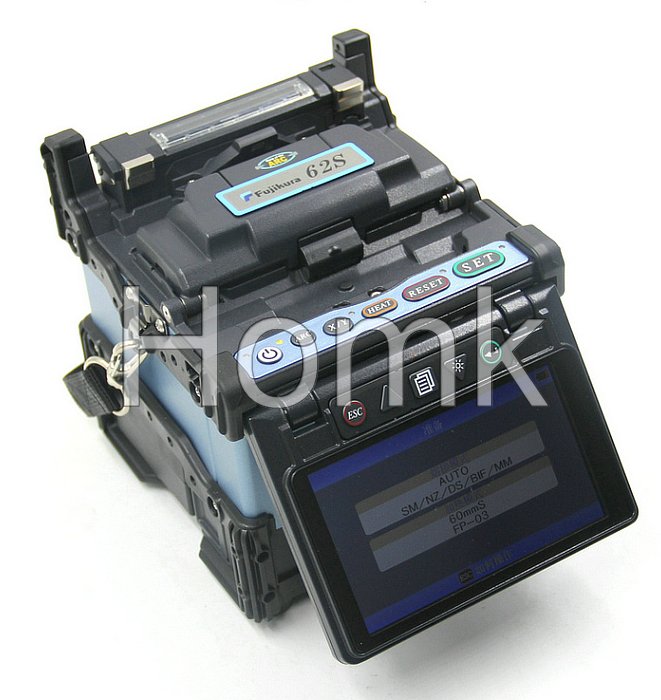

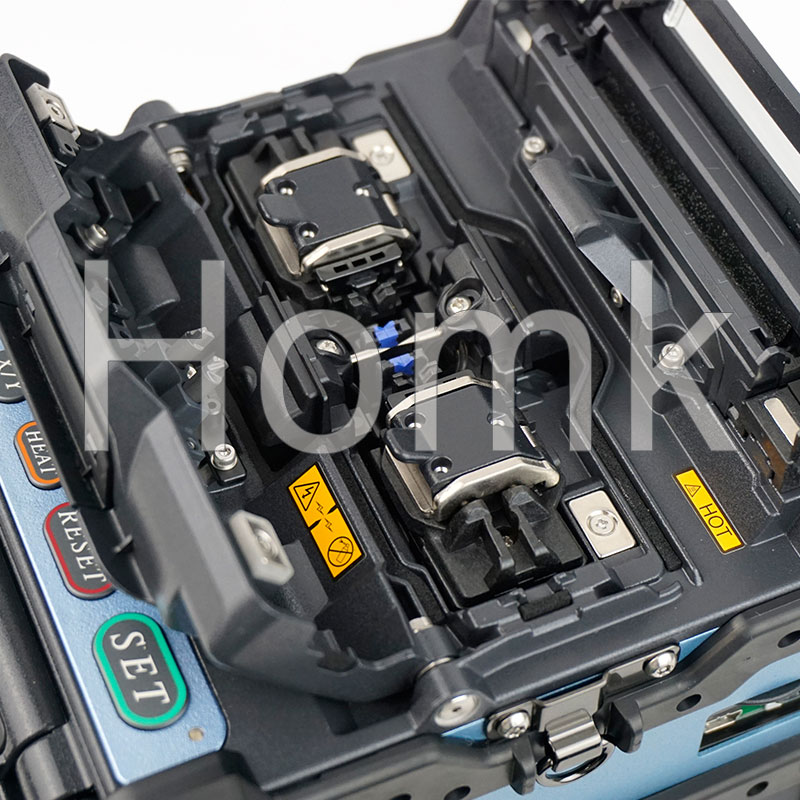

Fujikura FSM-62S Fiber Fusion Splicer
Features
Automated and programmable wind protector
7 seconds splicing time
14-second automated tube heater
Fully ruggedized for shock, dust and moisture
Li-Ion battery with 210 splices/shrinks per charge
5 mm cleave length for splice on connector or small package needs
Sheath clamp or fiber holder operation
On-board training and support videos
Internet software upgrades

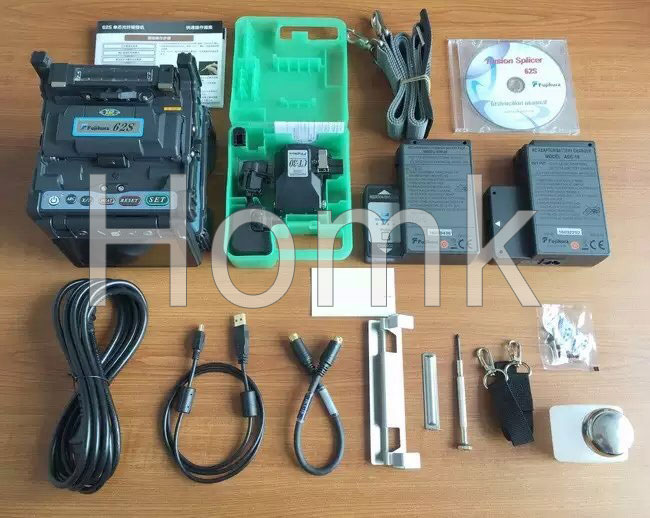

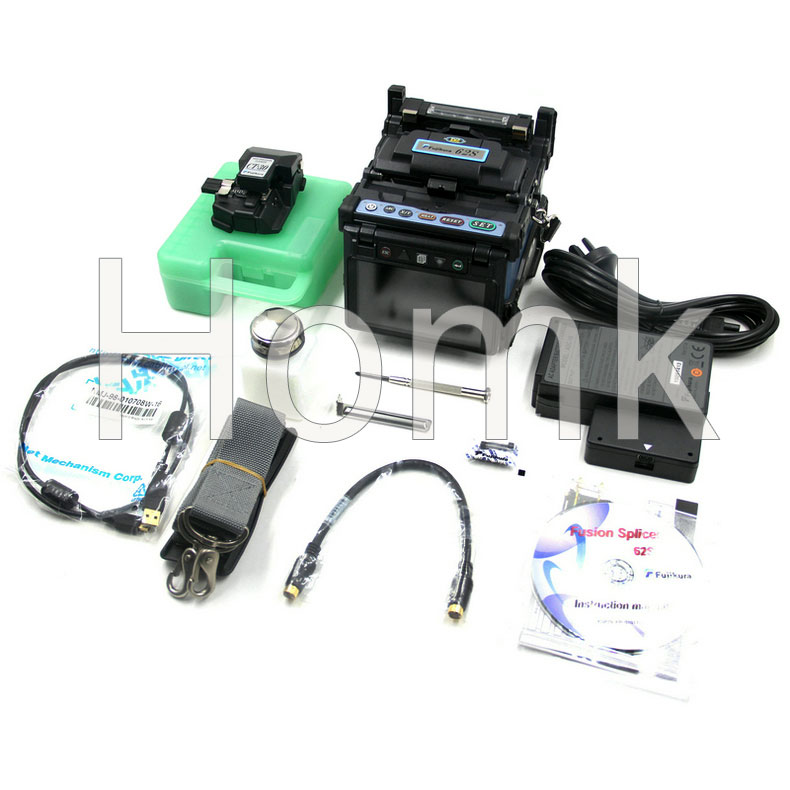

Multi-function transit case with integrated workstation
The FSM-62S fusion splicer sets the standard for core alignment fusion splicing by incorporating a user-friendly interface with enhanced features to provide the most rugged and reliable fusion splicer in the market today. The new rugged construction adds improved reliability by resisting shock, dust, and rain, and can withstand a 30” drop test
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
| Applicable Fibers | SM(ITU-T G. 652), MM (ITU-T G. 651), DS (ITU -T G. 653), NZDS (ITU-T G. 655) And other single mode fiber including ITU-T G. 657 fiber | Attenuation splicer function | Intentional high splice loss of 0.1dB to 15dB (0.1dB step) can be made for an In-line fixed attenuator |
| Fiber count | Single | Tube heater / Heating Time | Built-in tube heater with 30 heating modes. Typical 30 seconds with FP-03 slee |
| Cladding Diameter | 80μ M to150μ M | Applicable Protection Sleeve | 60mm, 40mm and Fujikura FPS01 series. |
| Coating Diameter | 100μ M to 1, 000μ M | Storage of Splice Result | The last 2000 results to be stored in the internal memory |
| Fiber setting and cleaved length | Sheathe clamp A (standard): For coating dia. Up to 250um (8 to 16mm cleave) | Tension Test | 1.96 to 2.25N |
| Coating dia | over 250um (16um cleaver) | Operating Condition | 0 to 5, 000m above sea level, 0 to 95%RH and -10 to 50 degC and up to 15m/s wind velocity, respectively |
| Sheathe clamp B (option) | For coating dia. Up to 1000um (8 to 16mm cleave) | Storage Condition | 0 to 95%RH and -40 to 80 degC respectively |
| Sheathe clamp C (option) | For 900um dia. Loose tube fiber (8 to 16mm cleave) | Battery | -20 to 30 degC for long term |
| Fiber holder (option) | FH-60-250 and FH-60-900 (10mm cleaver) | Dimensions | 136W x 161D x 143H (mm) / 5.3W x 6.3D x 5.6H (inches) |
| Splicing Modes | 100 preset and user programmable modes | Weight | 2.3 kg (5.1 lbs) with AC adapter ADC-13; 2.7kg with BTR-08 |
| Typical Average Splice Loss | 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS(Measured by cut-back method relevant to ITU-T and IEC standards) | Viewing Method | Two CMOS cameras and 4.1 inch TFT color LCD monitor |
| Return loss | > > 60dB | Fiber view and Magnification | 300X for single X or Y view, or 187X for X and Y view |
| Splicing Time | Typical 9 sec. With SM FAST, 10sec. With SM AUTO and 13sec with AUTO | Power Supply | Applicable voltage from 100 to 240V AC or 10 to 15V DC with ADC-13, 13.2V DC with BTR-08 battery |
| Modes with standard | SM (ITU-T G. 652) | No. Of Splice Cycles with battery | Typical 160 cycles (splice / tube heat) with BTR-08 |
| Splice Loss Estimate | Available | Electrode life | 2500 arc-discharges |
| Terminals | USB 1.1 (Mini-B type) connector for PC communication. | 6-pin Mini-DIN connector for HJS-02/03 or SH-8 power supply |
