8 Core Socket and Plug ODC- FCPC FTTA Patch Cord

Details

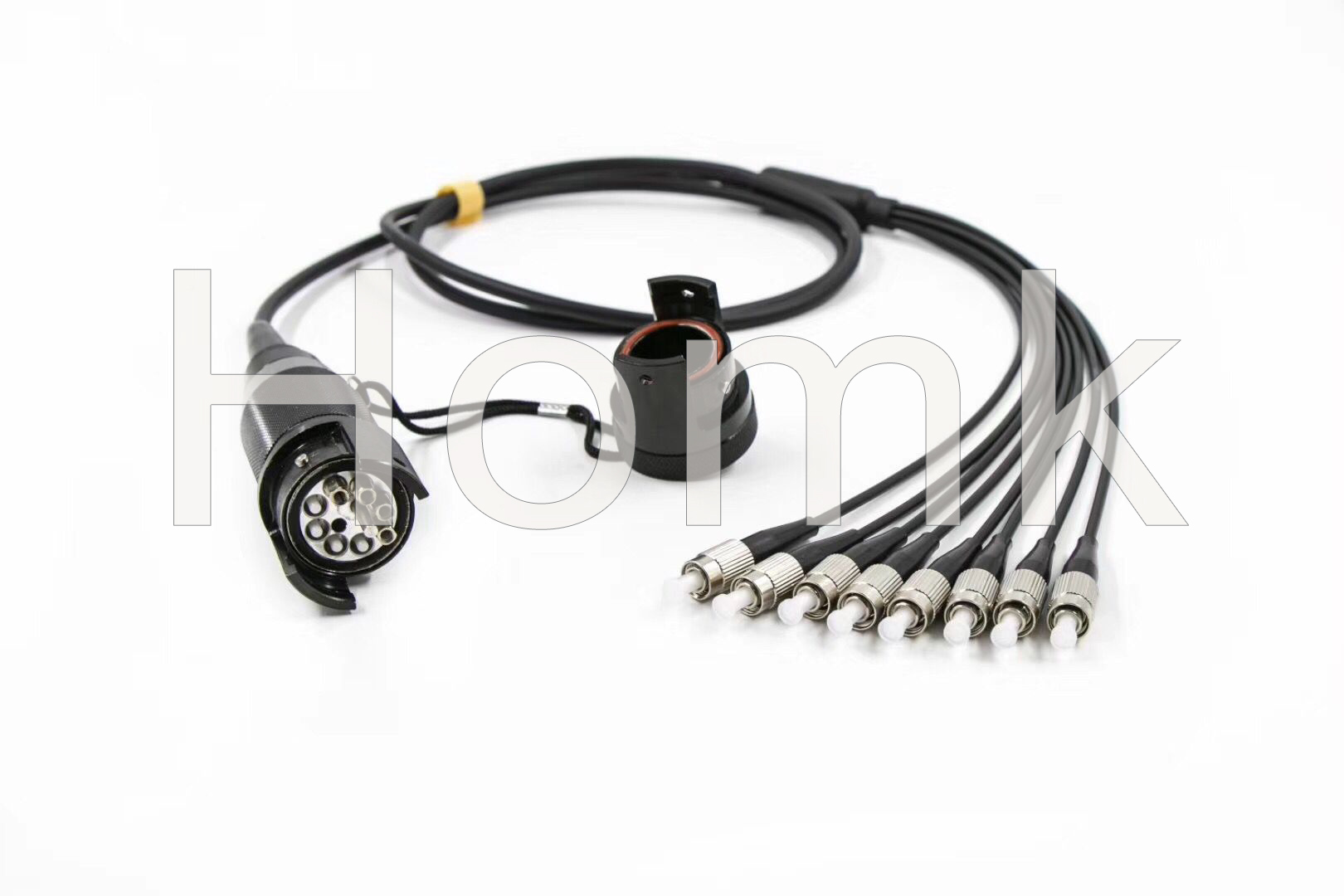

 8 Core Socket and Plug ODC- FCPC FTTA Patch Cord

Description

HOMK TECH  manufactures 2,4core ODC antenna feeder patch cables are made up of ODC plug/socket of outdoor connector with robust mating screwed mechanism and twin core plug duplex LC connectors. And the optical path is realized by connecting BBU(Building baseband Unit) to RRU(Remote Radio Unit). In order to ensure waterproof sealing, the ODC connectors are IP68/EMI protection, Salt-mist proof, the outdoor cable sheath adopts the low smoke halogen-free flame retardant materials (LSZH).


Applicants
Naval and ship building
Surveillance systems
Oil field, mine communication connection
Military communication equipment

Features
Easy and cost effective installation
High Vibration and Mechanical Resistance
Compact appearance
Be Installed Blindly,Quickly,Simply


pecification

Fiber Core2,4,6,8 etc
ModeSinglemodeMultimode
Operating Wavelength(nm)1310/1550850/1310
PolishmentUPCAPCUPC
Insertion Loss(Max.dB)0.70.6
Return Loss(Min.dB)556035
Mating times500 Min
Durability(Max.dB)0.2
Reaptability(Max.dB)0.5
Operating Temperature(℃)-40~+85
Storage Temperature(℃)-40~+85
