AI-7 Fiber Fusion Splicer

Details

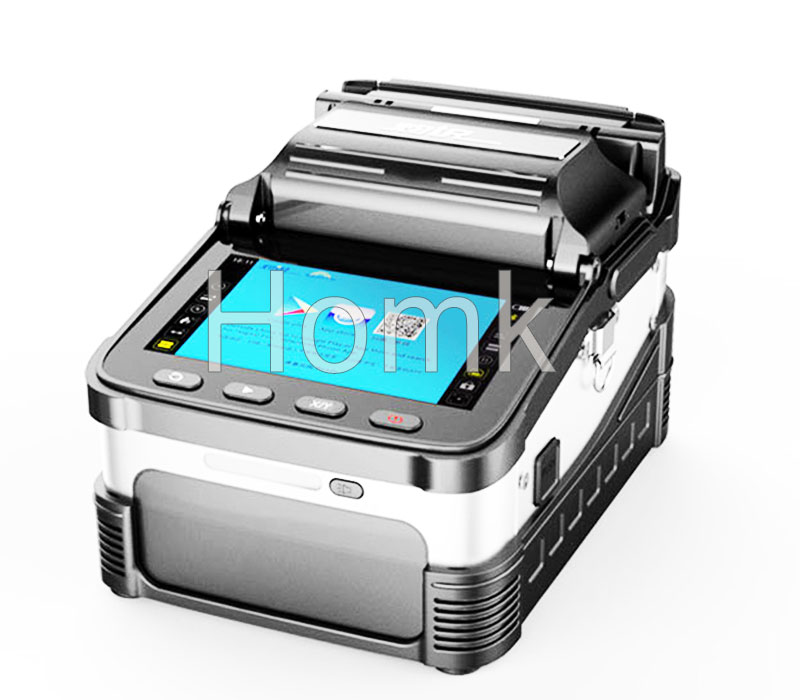

AI-7 Fiber Fusion Splicer

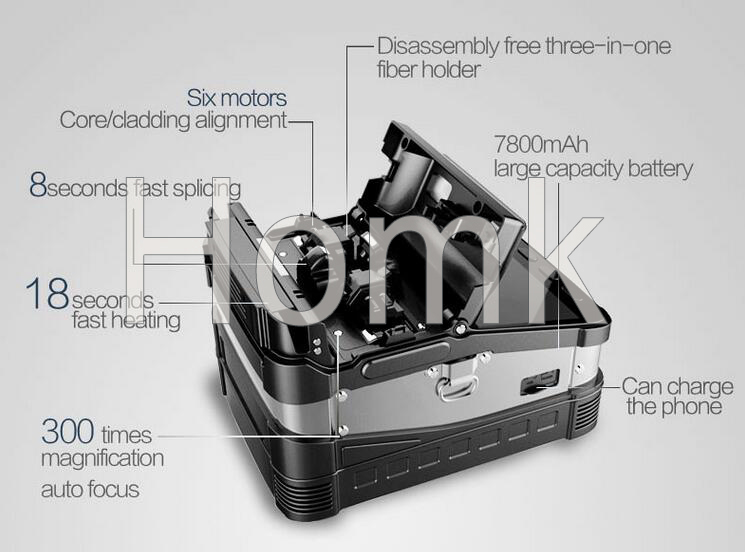

AI-7 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer.

It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects.

The  machine uses industrial quad-core CPU, fast response, is currently one  of the fastest fiber splicing machine in the market; with 5-inch 800X480  high-resolution screen, the operation is simple and intuitively; and up  to 300 times focus magnifications, making it is very easy to observe  the fiber with naked eyes.

8 seconds speed core alignment  splicing, 18 seconds heating, the working efficiency increased by 50%  compared to ordinary splicing machines.

Under the conditions of rigorous testing, the performance is still outstanding;

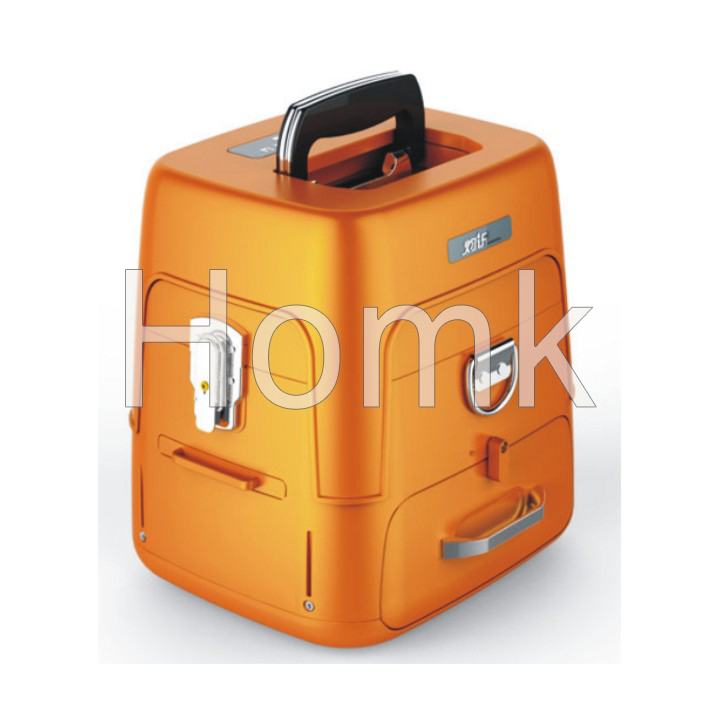

toolbox is small, exquisite, durable, and with unique bench design.

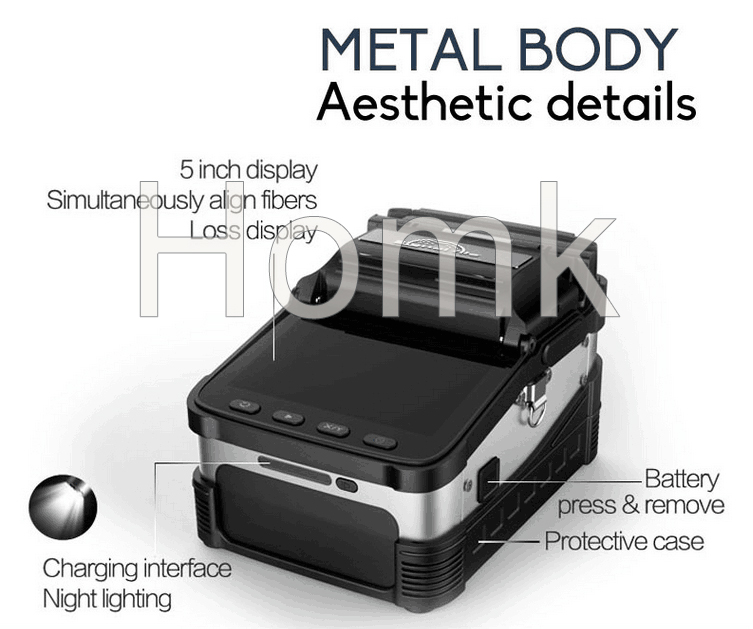

The  design of operating platform reflects the humanistic care; unique  lighting design, it is convenient for night construction or repair.

Screen  brightness is adjustable and it is convenient for outdoor sunshine  environment operation. The core parts are using imported brands,  aviation metal body material with exquisite details.

With the  combination of advanced technology and design, the new generation of  optical fiber fusion splicer will bring you a reliable and comfortable  user experience.



Applications:

    FTTx, FTTH,  FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance  for optical cables,for indoor fiber optic cable distribution.

Applicable   FiberSM,MM,NZ-DS,EDF,pigtail,Rubber-insulated   seriries wireAverage Splice   Loss0.025db(SM),0.01db(MM)0.04db(NZDS),0.04db(EDF)Return Loss≥60dBTension Test2.0N(200gf)(standard)Typical splicing time  8secondsTypical heating time18secandsProtection Sleeve Lengh400mm,60mmOperating LanguageChinese, EnglishOpreationg conditions+50 ℃(operation   temperature),0~95%RH(humidity),0~5000m(altitude)Power Supply7800mAH large capacity batteryMontior5Sinches 800 800×400 high-resolution screenFiber image magnificationsimultaneous X and Yviews with 300 times maginifactionOptical Fiber FixtureBare Fiber and Rubber-insulatdd WireDimensions 122(W)*130(D)*148(H)(mm)Net Weight2.6kg
