AV6471AG Fiber Fusion Splicer

Details

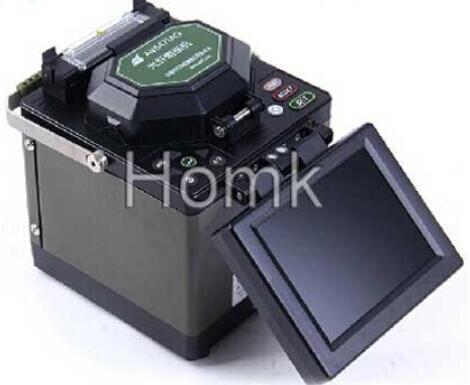

AV6471AG Fiber Fusion Splicer


AV6471AG is a new designed fiber splicing equipment.The powerful funtcion and super low splicing loss make it be competent for construction of trunk line and FTTX :Because of the compact configuration and precise mechanism,it can adapt  to execrable enviroment; The novel fiber imaging system make the image clearer and exquisiter;The real-time embeded OS provide friendly man-machine interface and abundant functions. The bulit-in large capacity Li-Ion battery can support long-time fieldwork.The embeded sensors measured temperature, humidity and air pressure supply closed-loop feedback control ,so the instrument can adopt all kinds  of atrocious circumstance and the consistency of splicing loss was improved.



Features



  • new-designed and digital fusion splicer and automaticsmall size, light weight, only 2.8kg with battery

  • high efficiency, 8 sec. splice time,30 heat time

  • automatic heating when shut down heating cover

  • automatic splicing when shut down windscreen

  • digital high-definition 5.7 LCD screen for displaying more perfect

  • Single X or Y view simultaneously, optical magnification of 304 times

  • discharge calibration system , generally do not to adjust parameter

  • long electrode life, discharge up to 4000

  • provide USB and VGA ports

  • accurate and real time appearance of dump energy of battery

  • built-in high capacity of lithium battery

  • be able to heat 200 times without stop

Specifications:



Applicable

SM, MM, DS, NZDS

Fiber cleaved length

8-16mm

Fiber diameter

Cladding diameter: 80-150um; coating diameter: 100-1000um

Oprate mode

Automatic ,semi-automatic ,manual

Fiber aligning method

Advanced PAS alignment mode

Average Splice Loss

0.02dB (SM), 0.01dB(MM), 0.04dB(DS), 0.04dB (NZDS)

Typical splicing time

9 second with standard SM fiber

Return loss

>60dB

Fusion program

12 (templet), 188 (user)

Tube typical heating time

30 second

Protection sleeve length

60mm, 40mm

Storage of splice result

5000 results, 3 parameter per result

Tension test

2N

Fiber magnification

Vertical dual display, 304 times magnification; level of dual display, 152 times magnification

Electrode life

4000

No. of splice/ heating with battery

Typical 130 cycles

External interface

provide USB and VGA ports

Display screen

5.7 inch 640*480 color LCD monitor

Power Supply

Built-in lithium battery 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A

Heat shrinkable tube

60mm,40mm and other series of tube

Operating condition

0-5000m above seal level, -10~50ºC, max wind velocity of 15m/s

Dimension

150(D)x150(w)x160(H)mm

Weight

2.8KG including battery
