Shenzhen Homk Telecom Tech Co., Ltd.

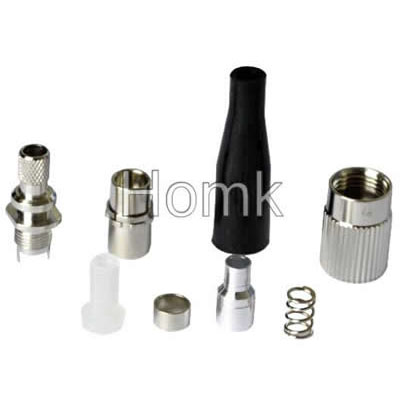

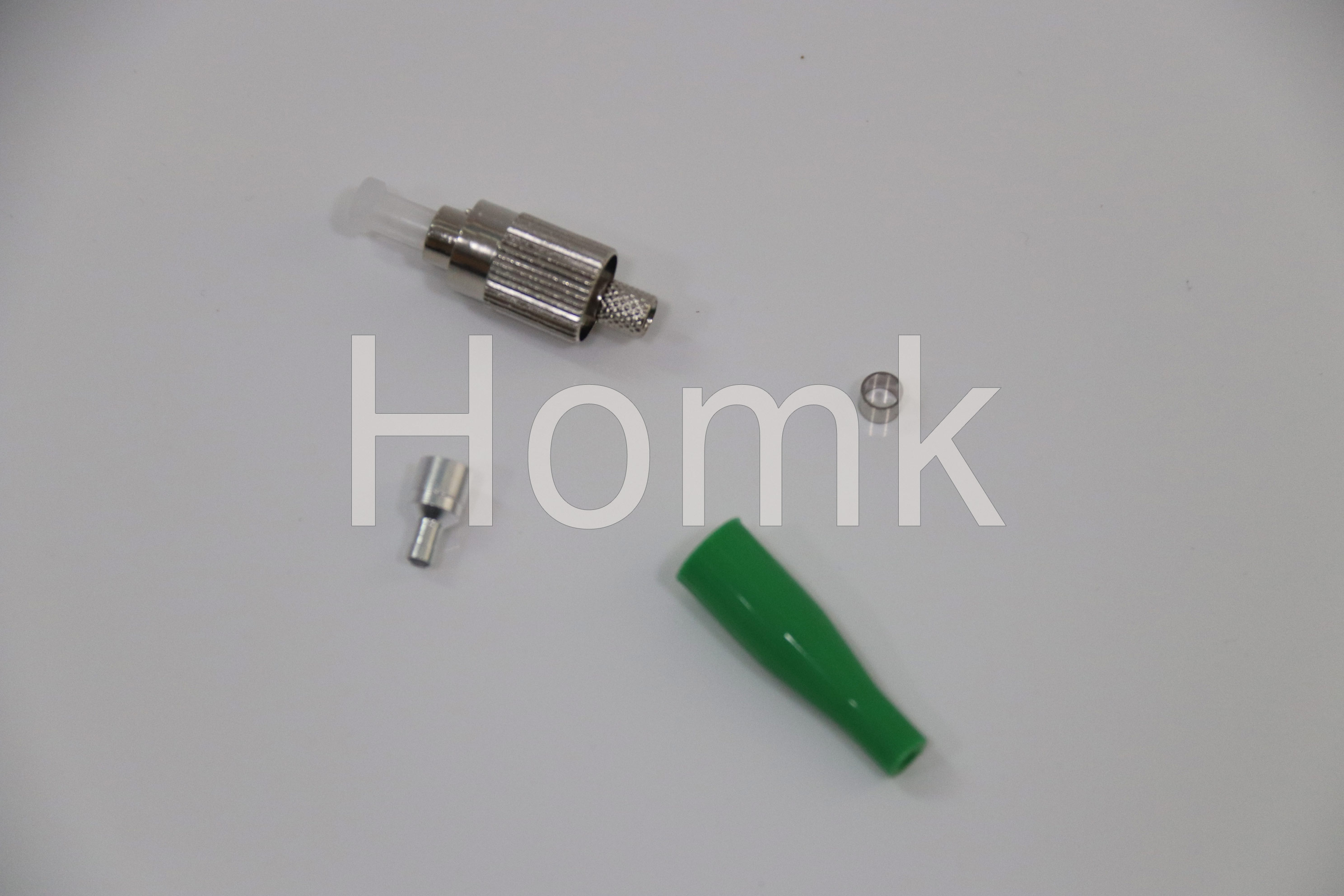

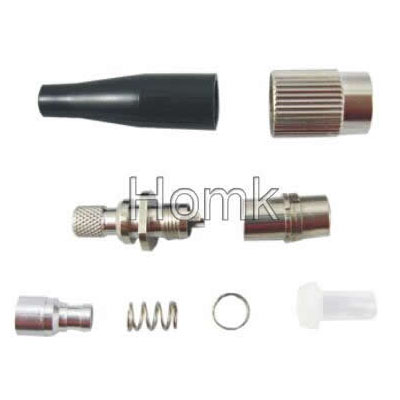

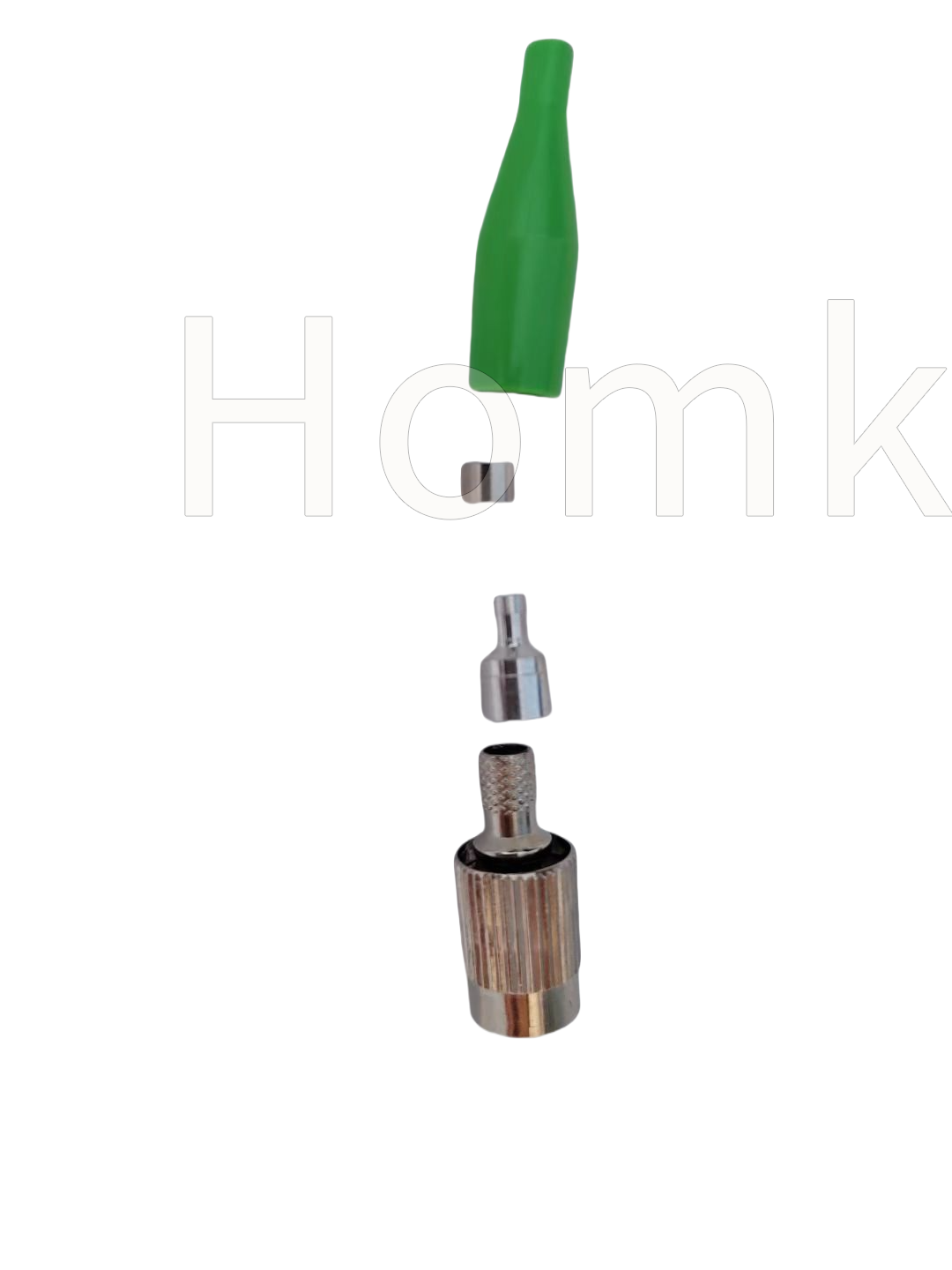

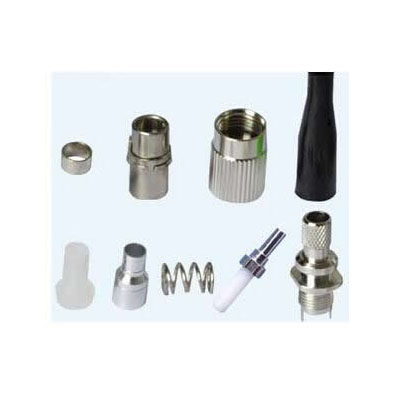

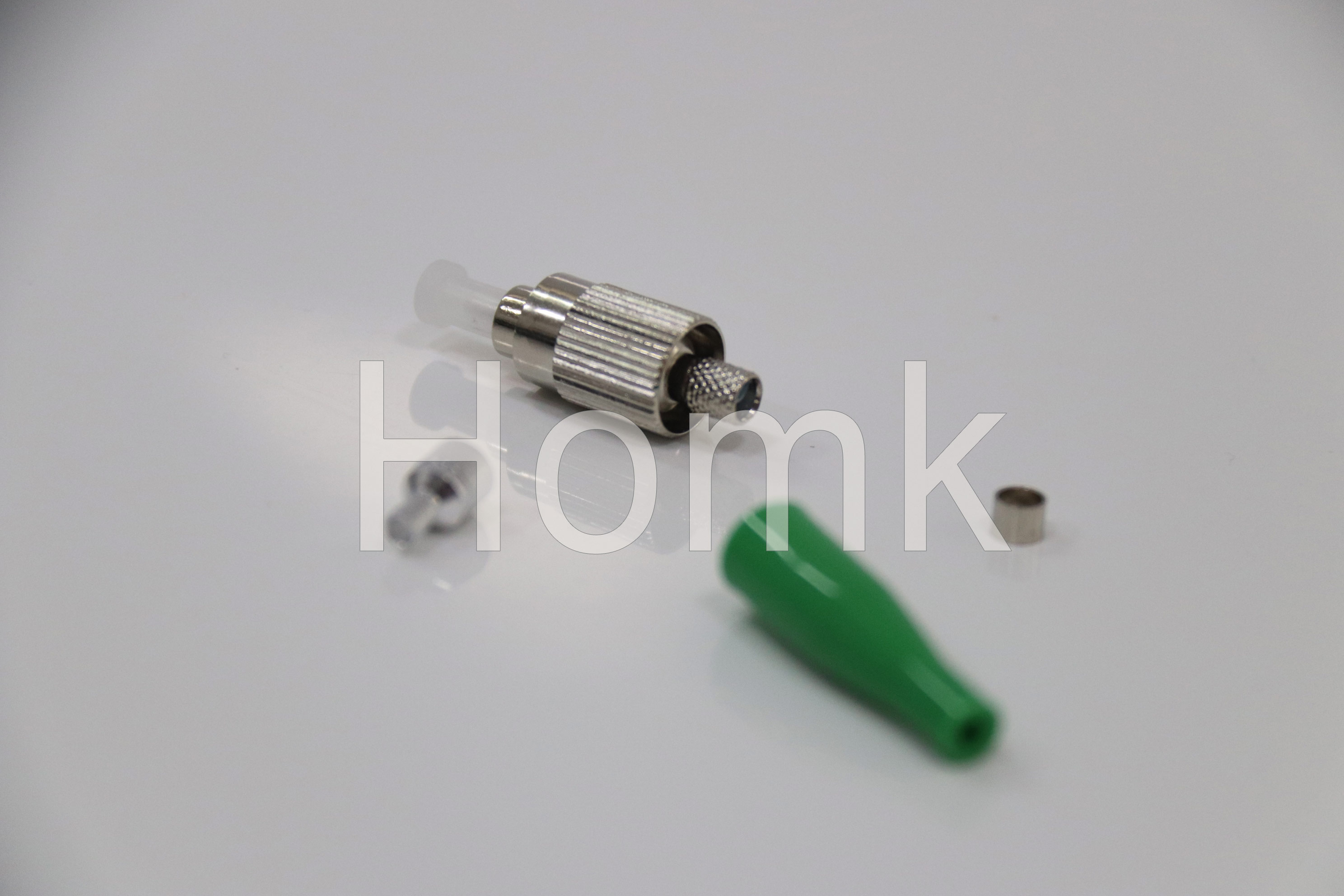

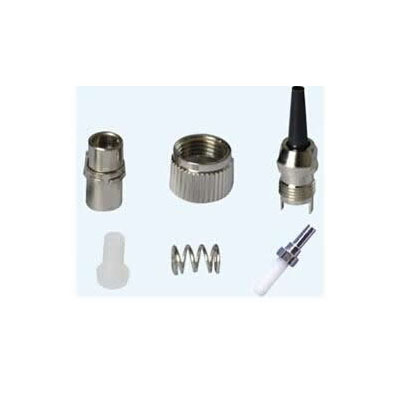

FC/APC fiber optic connector kit

Details

FC/APC fiber optic connector kit


1. Feature


1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤ 0.3 (PC); ≤ 0.2 (APC); ≤ 0.2 (UPC); ≤ 0.3 (SPC);
3) 100% optic test: Return Loss: ≥ 45 (PC); ≥ 60 (APC); ≥ 55 (UPC); ≥ 50 (SPC);
4) φ 0.9mm, φ 2.0mm, φ 3.0mm cable optional
5) Simplex and duplex connector available;
6) Good exchange ability and good durability;
7) Available in fiber bunch, ribbon fan-out, pigtail available;
8) Meets ISO9001, ROHS and Bell core GR 326-core standards;
9) Customized specifications are welcomed.


2. Applications
1) CATV, metro test equipment; FTTH;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.
8) Optical Distribution Frame
9)Optical Network Equipments

GST with own module in E2000 Fiber Optic Connector and accessories produce. And supply almost to 100 factories in China who do fiber cable assmble and connector traders.

1. Fiber Optic Connector and Connector kits -SC/APC
2. Singlemode
3. Producing Ability 10000 piece per day
4. Market China market and abroad
5. Price The cheapset in China, for large quanity, price more competitive.

GST Company with own injection workshop, press workshop, specializing in fiber optic connector and connector kits produce and export.
Main type
SC/PC, SC/APC, FC/PC, LC/PC, ST/PC, FC/APC
3.0MM, 2.0MM, 0.9MM,
Singlemode, multimode available


Item

LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc

Type

Multi-Mode

Single-Mode

Light   Characteristic

Operating   Wavelength

850nm&   1300nm

1310nm   & 1550nm

Typical   Insertion Loss

0.2dB   & 0.2dB

0.2dB   & 0.2dB

Mechanical   Testing

Repeatability

≤ 0.2dB

Exchange

≤ 0.2dB

Durability

>   1000 (Times)

Temperature

Storage   Temperature

25 ~+85

Operating   Temperature

25 ~+85

Length,   Color, Out-Diameter, Fiber counts

According   to the customers' requirement
