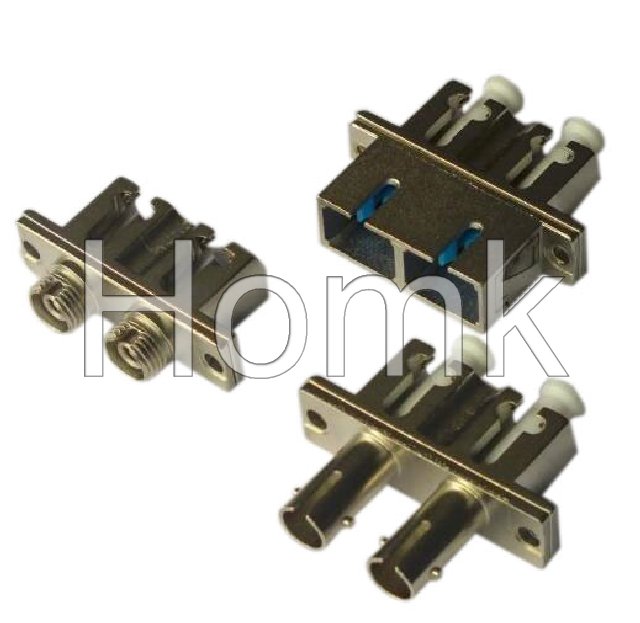

FC-LC ST-LC SC-LC Fiber Adapter

Details

FC-LC ST-LC SC-LC Fiber Adapter

Product Description

BRIEF INTRODUCTION

Homk provides kinds of Hybrid Adapter, plastic, semi-metal, metal type housing available.


FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with ROHS
polytypic
 APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN


SPECIFICATIONS (Hybrid type adapter)
ITEMPARAMETER
Applicative adapter typeSC,LC,FC,ST,MU,D4,DIN
Fiber modeSingle modeMulti-mode
Adapter colorBlue, green, metalBeige, metal
Test wavelength1310nm, 1550nm850nm, 1300nm
Insertion Losstypical≤0.15dB,Max≤0.20dBtypical≤0.15dB,Max≤0.20dB
Repeatability≤0.10dB
Interchangeability≤0.20dB
Durability≤0.20dB Max change,1000 mating
ChannelsSimplex,Duplex,4channels
Body materialPlastic or metal
Sleeve materialCeramic(ZrO2) or Customized
Operating Temperature-20ºC to +70ºC
Storage Temperature-40ºC to +85ºC
