LC-SC Fiber Optic Adapter

Details

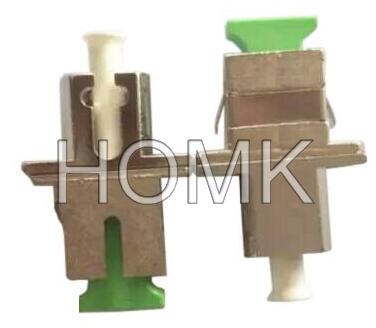

LC-SC Fiber Optic Adapter


Hybrid optical adapters with male to female configuration are very useful in connecting patchcords with different connectors. Because both a connector plug (male) and an adapter socket (female) are provided, this hybrid adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system. It has low insertion loss and high return loss. We provide hybrid adapters bridging popular connector types, such as FC, SC, ST and LC. Features: •Insertion loss < 0.3dB •Return loss > 50dB (SM) •High repeatability •High environmental stability •Various of connector and adapter types Specifications: Alignment Sleeve ZrO2 Housing Material Zn-Alloy or Cu-Ni (metal) & Engineering Plastic Blue (plastic) Insertion Loss 0.30dB max., 0.10dB typ Durability 500 matings, 0.2dB max. increase Retention Force 200~600grams Operating Temperature -40~+80°C


SPECIFICATIONS (Hybrid type adapter)

ITEMPARAMETER
Applicative adapter typeSC,LC,FC,ST,MU,D4,DIN
Fiber modeSingle modeMulti-mode
Adapter colorBlue, green, metalBeige, metal
Test wavelength1310nm, 1550nm850nm, 1300nm
Insertion Losstypical&le;0.15dB,Max&le;0.20dBtypical&le;0.15dB,Max&le;0.20dB
Repeatability&le;0.10dB
Interchangeability&le;0.20dB
Durability&le;0.20dB Max change,1000 mating
ChannelsSimplex,Duplex,4channels
Body materialPlastic or metal
Sleeve materialCeramic(ZrO2) or Customized
Operating Temperature-20&ordm;C to +70&ordm;C
Storage Temperature-40&ordm;C to +85&ordm;C
