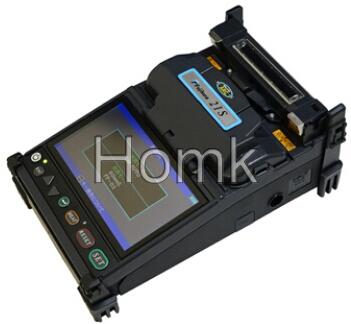

FSM-21S FUSION SPLICE
Features
1.World’s smallest splicer at 4.76"W x 6.38"D x 2.24"H
2.Fully ruggedized for shock, moisture and dust resistance
3.Transit case converts to easy to use workstation
4.Dual camera,fixed v-groove alignment technology
5.Extended life electrodes
6.Long life battery (100 splices/shrinks per charge)
Specification:
| PARAMETER | VALUE |
| Model | Fujikura 21S Fusion Splicer |
| Applicable Fibers | Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655) |
| Number of Fibers | Single fiber |
| Cladding Diameter/Coating Diameter | 125 μm / 160 μm to 3 mm by #ber holder system |
| Cleave Length | 5 mm to 13 mm |
| Splice Mode / Heating Mode | Total 100 splice modes / 30 heating modes |
| Typical Average Splice Loss | 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS) and 0.08 dB (NZDS) |
| Splice Time/Tube Heating Time | Typical 15 sec with SM / Typical 30 sec with FP-03 (60 mm) sleeve |
| Splice Result Storage | Last 2,000 splices |
| Viewing Method/Magnification | 2 axis CMOS camera with 4.47 inch color LCD/100X magnification |
| Tension Test | 1.96 to 2.25 N |
| Number of Splice/Heat with Battery | Typical 100 cycles with BTR-10 |
| Electrode Life | 3,000 splices |
| Operating Condition Altitude: | 0 to 3,660 m above sea level, Wind: 15 m/sec |
| Temperature: | -10 to 50 deg C, Humidity: 0 to 95% RH, non-dew |
| Rugged Features Shock resistance: | 76 cm (30 inch) bottom surface drop |
| Dust resistance: | Exposure to dust (0.1 to 500 μm dia. Alumina Silicate) |
| Rain resistance: | H=10 mm/hr for 10 min |
| Dimensions | 121W x 162D x 57H (mm) / 4.76 W x 6.38 D x 2.24 H (inches) |
| Weight | with Battery 776 g / 1.71 lbs. |
