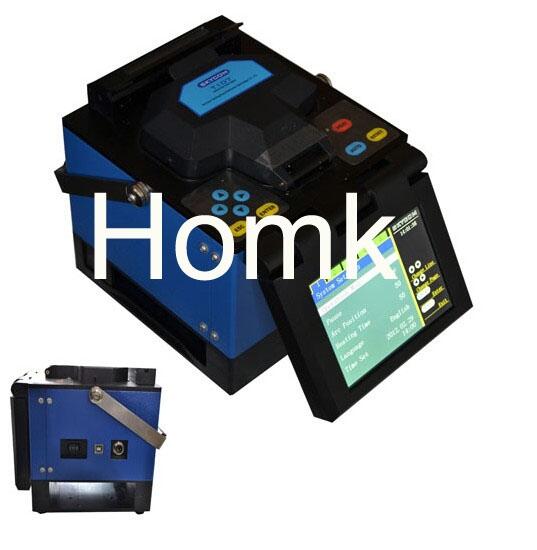

Fiber fusion splicer HK-810
Features
1. HK-810 fiber fusion splicer has 5 inches high Resolution colorful LCD display Fiber core can Be display clearly
2. Single X or Y view and X & Y view simultaneously with 180 times magnification
3. HK-810 fiber fusion splicer is auto check quality of cleaved end face Lithium battery: Up to 180 times of continuous splice and heat
4. HK-810 fiber fusion splicer is auto select best splicing program 5.9 seconds splice time and 30 seconds heat time Splicing mode: Auto & Manual, New developed technology providing wind and dust resistance
6. HK-810 fiber fusion splicer be small bulk and light weigh
7. HK-810 fiber fusion splicer with USB Port Storing 6, 000 groups of splice results.
8. Simple Operation menu
HK-810 fiber fusion splicer Standard Packing
PT-650 Fusion Splicer Main Body
PT105 High Precision Fiber Cleaver
Fiber Coat Stripper
Internal Battery
Charger, AC Power Cord
USB Flash Disk
Spare Electrodes (one pair)
Cooling Tray, Alcohol Pump Bottle, Blower Brush
Carrying Case
User's Manual.
| Model | HK-810 |
| Applicable fibers | SM (ITU-T G. 652), MM (ITU-T G. 651), DS (ITU-T G. 653), NZDS (ITU-T G. 655) |
| Fiber cleaved length | 8-16mm Coating diameter 250µ m, 16mm Coating diameter: 250 - 1000µ m |
| Fiber diameter | Cladding diameter 80 -150µ m, Coating diameter 100- 1000μ m |
| Fiber Count | Single |
| Fiber aligning method | Core aligning |
| Return loss | more than 60dB |
| Actual average splice loss | 0.02dB SM, 0.01dB MM, 0.04dB (DS), 0.04dB( NZDS) |
| Splicing mode | auto |
| Splicing mode | 12(template), 188(user) |
| Typical Splicing time | Typical 9 sec with standard SM fiber |
| Protection sleeve length | 60mm, 40mm and a series of micro sleeves |
| Storage of splice result | 5000 results, 3 parameter per result |
| Tension test | 2N |
| Fiber display and magnification | 400X X or Y view, 200X X and Y view |
| Tube heating time | Typical 30 sec |
| Electrode life | 2500 |
| No. of splice/heating with battery | Typical 130 cycles (splice/tube heat) with inner Li-battery |
| Display screen | 5 inch color LCD monitor |
| Image change over | The fiber image is turned upside down |
| Terminals | RS 232 |
| Operating condition | 0 ~ 5000m above sea level, 0 - 95%RH and Negetive 10-50degree, respectively, Max. wind |
| Power supply | AC 100-240V with AC adapter; inner Li-battery(6600mAH) |
| Dimensions | 150mm(L) x150mm (W) x160mm (H) |
| Weight | 3.52 Kg including battery |
