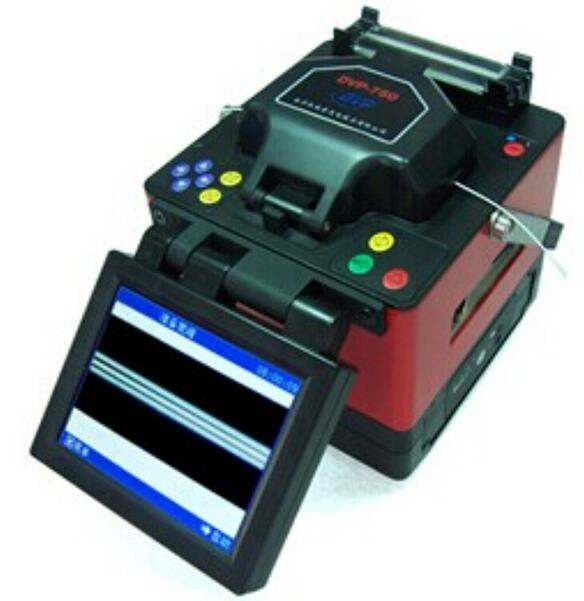

HK-750 Fusion Splicer

High definition LCD display with four modes and visible fiber core

• Core or cladding alignment

• PAS technology

• Auto and manual splicing method

• 8000 splice results groups storage

• USB interface

• Lithium battery

Specifications:

Splice time - 8s

Applicable fibers - SM, MM, DS, NZ-DS, EDF and others

Average splice loss - 0.02 dB (SM), 0.01 dB (MM)., 0.04 dB (NZD)

 Return loss - ≤ 60 dB

Protection sleeve length - 20 mm, 40 mm, 60 mm

 Tension test - 2.0 N (standard)

Interfaces- USB

Input voltage - 176 ~ 264 V

Output voltage - 12 V

Battery capacity - 8 Ah

Continuous splice and heat - up to 180 times

Dimensions, mm - 140 × 150 × 160

Weight, kg - 2.8
