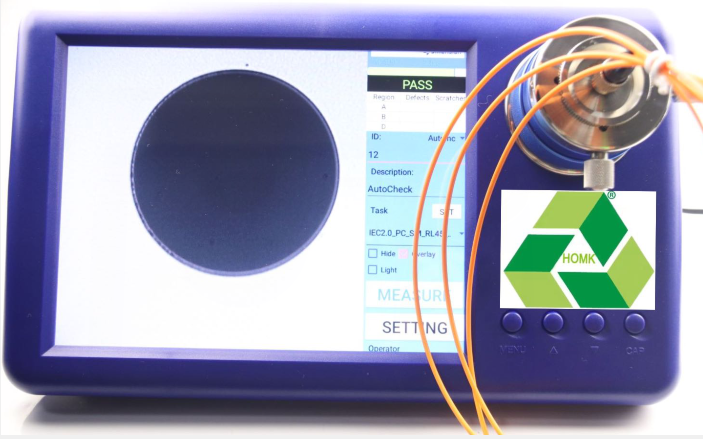

HK-400S Intelligent Integrated Fiber End-face Visu

Details

HK-400S Intelligent Integrated Fiber End-face Visu


HK-400S is the first intelligent integrated fiber end-face inspector developed by Homk.With the advantages of Dimension image analysis software and high performance embedded system,

It can identify the tiny defects accurately, conveniently and simply. The fiber end-face inspection complies with IEC standard and customized criteria.

Product Parameters

1.Automatic Defects Analysis
With the help of Dimension image analysis software and high performance embedded platform, HK-400S can identify the tiny defects and mark on the image. The precise performance doesn’t rely on operator’s experience.

2.Android Embedded System

It is a stand-alone Android embedded system. No extra parts are required to perform inspection and reporting. System monitoring and upgrading are convenient and simple.

3.Pre-set IEC Criteria for inspection
The inspector uses customized criteria for fiber end-face inspection. The latest IEC standard is configured as the default criteria. The fiber end-face inspection is simplified to select criteria then click the Measure button. The testing accuracy, reliability and repeatability are gua
4.Multi accesses to testing result

The testing reports will be saved on SD card or server through WIFI or Ethernet. It’s convenient to document the testing results for reference in the future.

5.Intelligent Inspection
This fiber microscope can be configured to start the inspection automatically. After the position of fiber end-face locked, HK-400S will focus and center the image automatically, then start the measurement.

6.Automatic Reporting
It stores the testing report to SD card after each inspection. The comprehensive testing report helps manage and review the testing results.

7.Complete tips
The inspector has complete tips for the various connectors in the market. The tips for HK-400S are interchangeable with tips for Easycheck integrated end-face inspector.


Model and Specifications

Model

AC200

AC400

Magnification

200X

400X

XY Adjustable

O

O

CCD Resolution

2M pixels

Image Analysis

Auto

Focusing

Auto

Power Consumption

3W

Operational Temperature

-10    +55

Storage Temperature

-10    +55

Interface

2*USB 1*PS/2 1*SD 1*Ethernet Port

Display

8″ TFT  800*600 PIX

Power Supply

DC 12V

Size

270mm*245mm*155mm

Weight

1.6kg
