HK-400L Handheld End Face Inspector

Details

HK-200L Handheld End Face Inspector Can Match With A Variety Of Adapter Interface

HK-400L Handheld End Face Inspector is developed by Shenzhen Homk Telecom Tech Co.,Ltd. It can used for enlarging the image by 200 times or 400 times, very cleary judge the situation of Fiber end face, such as scratches and dirt point.

It's fiber end detection system using 3.5-inch 220,000 pixel TFT high-definition LCD, can work continuously more than 8 hours after charge. A full range of adapter interfaces meets the all of needs of fiber end inspection.

1. Longer service life, better image quality
The internal structure of the Handheld inspector has been redesigned to provide a longer service life. No matter how bad the use of the environment, the internal optics will not be degraded, the image quality is always good.

2. Use the aviation electrical interface, connection more stable
According to customer feedback to change to the aviation electrical interface, can provide a more stable connection, longer service life. Whether the factory environment or outdoor engineering site, our detector can always guarantee a stable and clear image.

3. New image acquisition card and new image acquisition software
It uses a new image acquisition card, eliminating the need for driver installation and compatible with more system environment (including Windows 8 and above). The image acquisition software also come out a new version that provides clear images while also introducing intelligent software algorithms to analyze images (optional). At the same time, HK-400L also retains the use of adapter cable output to the desktop display capacity. (Optional adapter cable)

4. A variety of Kinds of product testing function, can detect MT products

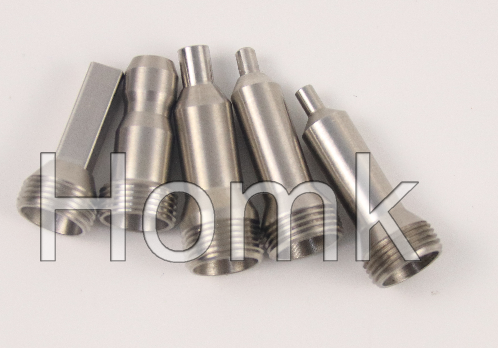

The inspector can match with
a variety of adapter interface, to meet the detection of a variety of fiber optic connectors. optical transceiver module, TOSA & ROSA components etc. products testing requirements. The new MT interface can detect MPO, MTP products, such as MPO, MTP adapters, 40G, 100G optical modules etc. products; can fully meet the next high-density data center maintenance tasks.


Project

parameters

Image magnification

400 times or 200 times

Video signal format

PAL

Power consumption

3W

Display

3.5" TFT

Operating temperature

-10~50℃

Storage temperature

-20~50℃

power supply

Built-in rechargeable 12V battery or   external power supply

A power supply working time

8h

Volume

Display   205 mm * 94 mm * 25 mm
Ontology is 23 mm * 160 mm

 Resolution

equipment

125 um fiber core in 8 inch screen display   size

The range of the 8 inch screen

125 um fiber core in 3.5 inch screen   display size

In the 3.5 -inch range of observation

In 3.5 the resolution of the screen

KMT700 200

Φ44 mm

340.9~454.5um

Φ20 mm

312.5~425um

2.5um

Easyget 400

Φ58 mm

258.6~344.8um

Φ26 mm

240~327um

1.5um
