Handheld Fiber Polishing Machine(HK-M)

Details

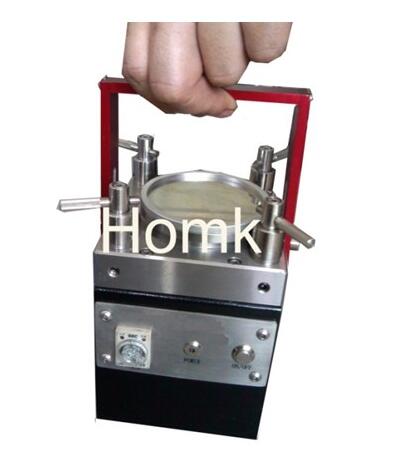

Handheld fiber polishing machine HK-M


Features:

1 HK-M is Homk 2012 new machine, it also adopt two Janpan mini motors, inside uses bearing drive work(Inside wheel bead in turn), will not wear out other metal parts.

2 The polisher is suitable for small batch polishing, return polishing. Excellent performance, high efficiency and durable polishing machine

3 It is very good mobility, a maximum of 6 polishing head. Polishing cycle is very short, inside all components adopt USA PQP metal hardening technology, Surface hardness up to 80 degrees, it is highly wearable.

4 Operation flexibility is high fast processes (just 30S)each kind of connectors(can processing: FC, SC, ST, LC, MU, MTP. MPO, MT, MTRJ, E2000 ect)with high effect, low insert loss and low return loss. Low repair coefficient. The good interchangeability and repeatability.

5 This machine is very suitable for laboratory and engineering construction application and good stability. HK-M has a strong shell packaging, simple design easy to operate. And
Convenient and safe to carry

Handheld fiber polishing machine Parameter
1. Applicable Connectors: FC, SC, ST, MU, LC, E2000, MPO, MTP, MTRJ UPC or APC and so on,
2. Weight: 2.85Kg
3. Dimensions: 100mm L*120mm W*120mm H
4. Power: 12vDC
5. Polishing Time: 0 - 30 sec. (1 piece timer)
6. Polishing Method: Rotation & revolution
7. Motor speed: 100rpm/rotation
3.3rpm/revolution
8. Power: 15W
9. Polishing capacity: 1-6connectors
10 Voltage: 12VDC
11. Plate size/ Film size: 68mm

Environmental protection, simple design easy to operate.

Pressure way4 coil springInsert Loss 0.3 dB (SM)
0.2 dB (MM)
Polishing capacity(max)SC, FC, ST, LC: 6 unitsReturn Loss50 dB (PC)
60 dB (APC)
Polishing connector typeFC, SC, ST, LC, MU, MTP, MPO, MTRJ and so onRadius10~25mm
Motor speeed100rpm rotation, 3.3rpm revolutionOffset50 μ M
Dimension120*130*180mmUnder cut50nm
Film size68mmRepeatability  0.1dB
Weight2.85kgsInterchangeability0.2 dB
Input voltage12vDCWorking Situation Temperature  -10— +40º C
polishing cycle30-60sHeavy punch500g or 250g
Polishing chassis diameter80mm
Polishing time setting0-60s
Counterweight pressure  2.1~3.6kgf/cm
Time Range0-60S
Polishing Time 2 min. (quick assembly type)
 3-4 min. (standard connectors)
Pressure Range0~3kg
Precession Speed1rpm
