Japan Fujikura Fusion Splicer FSM-80C

Details

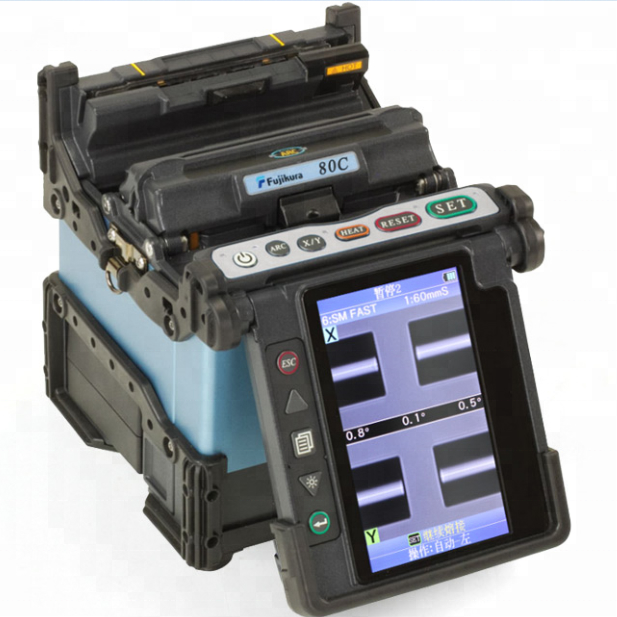

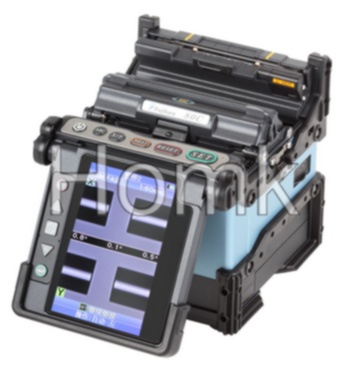

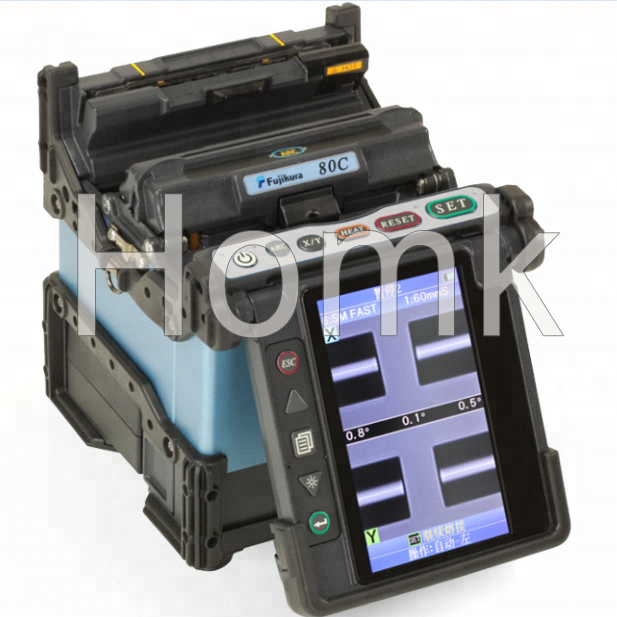

Japan Fujikura Fusion Splicer FSM-80C


Features:

1.Automated and programmable wind protector
2.14-second automated tube heater
3.Fully ruggedized for shock, dust and moisture
4.Li-Ion battery with 200 splices/shrinks per charge
5. 5mm cleave length for splice on connector or small package needs
6.Sheath clamp or fiber holder operation
7.On-board training and support videos
8.Internet software upgrades

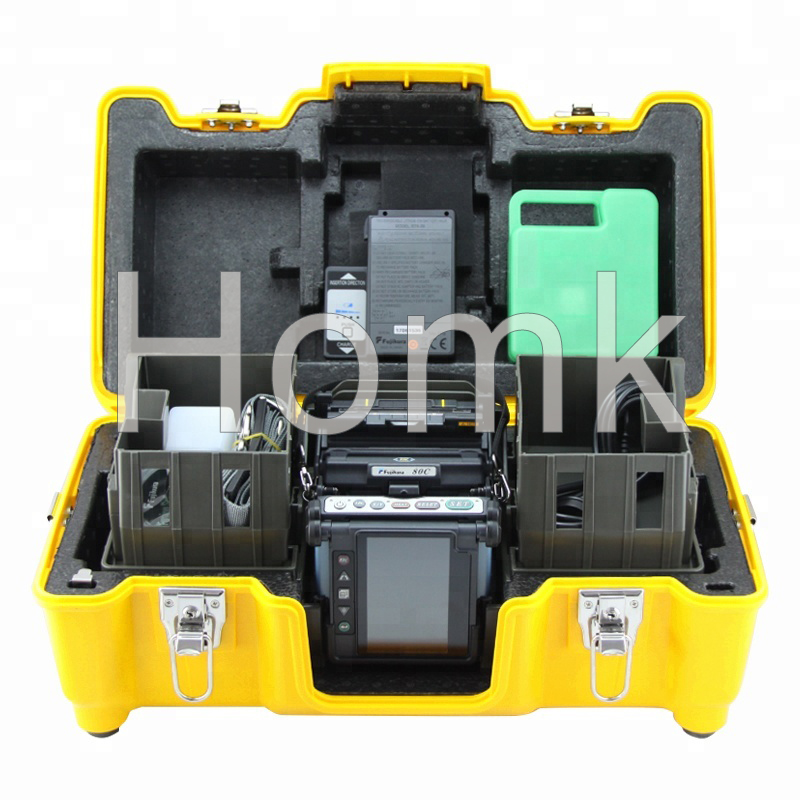

9.Multi-function transit case with integrated workstation

Splice loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and

0.04dB (NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.



Attenuation splice function



Intentional high splice loss of 0.1dB to 15dB(0.1dB step)can be made for an in-line fixed attenuator.

Splice time / tube heating time

Typical 7sec with SM / Typical 14sec with FP-03 (60mm) sleeve

Splice result storage

Last 2000 splices

Viewing methods / magnification

2 axis CMOS camera with 4.73” color LCD.

X / Y (320X magnification), or both X and Y simultaneously (200X magnification)

Tension test

1.96 to 2.25N

Applicable protection sleeve

60mm, 40mm and Fujikura micro sleeves

No. of splice / heating per battery full charge

Typical 200 cycles with BTR-09

Electrode life

3000 splices

Size / weight

146W x 159D x 150H (mm) / 2.7kg (including battery)

Operating condition

Altitude : 0 to 5,000m above sea level, Wind : 15m/sec

Temperature : -10 to 50deg C,

Humidity : 0 to 95%RH, non-dew

Resistance features*1

Shock : 76cm (30inch) all surface drop

Dust : Exposure to dust (0.1 to 500um dia Alumina Silicate), IP5X Rain :H=10mm/hr for 10min, IPX2

Other features

PC software upgrade / data management

Terminals

USB 2.0 (Mini-B type) connector for PC communication.

6-pin Mini-DIN connector for HJS-02 or HJS-03 power supply
