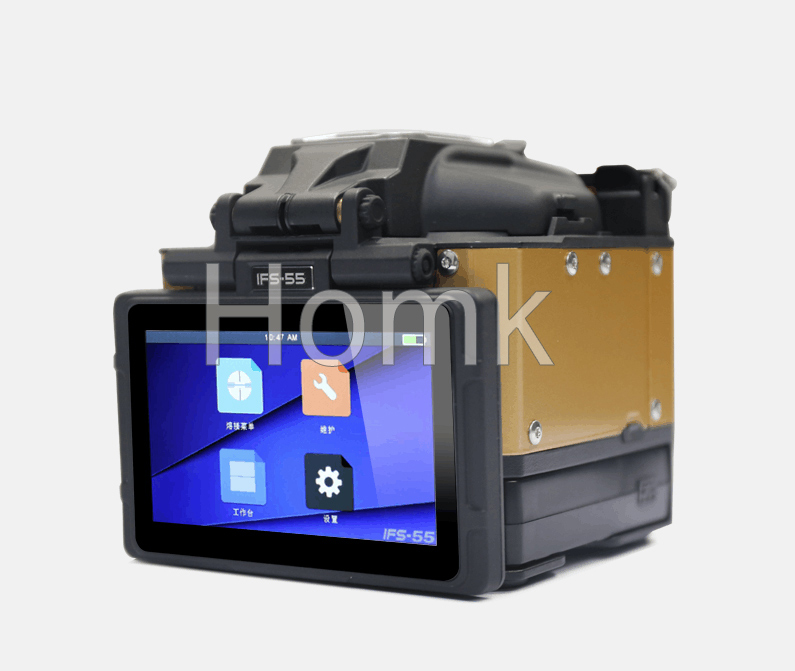

Koera INNO IFS-55 Fiber Fusion Splicer

The IFS-55 fusion splicer features a compact design, an adjustable core cladding alignment, and a multi-function fixture designed for FTTH.

The three-sided white light makes the user's night operation more convenient; the touch screen makes the user experience more comfortable.

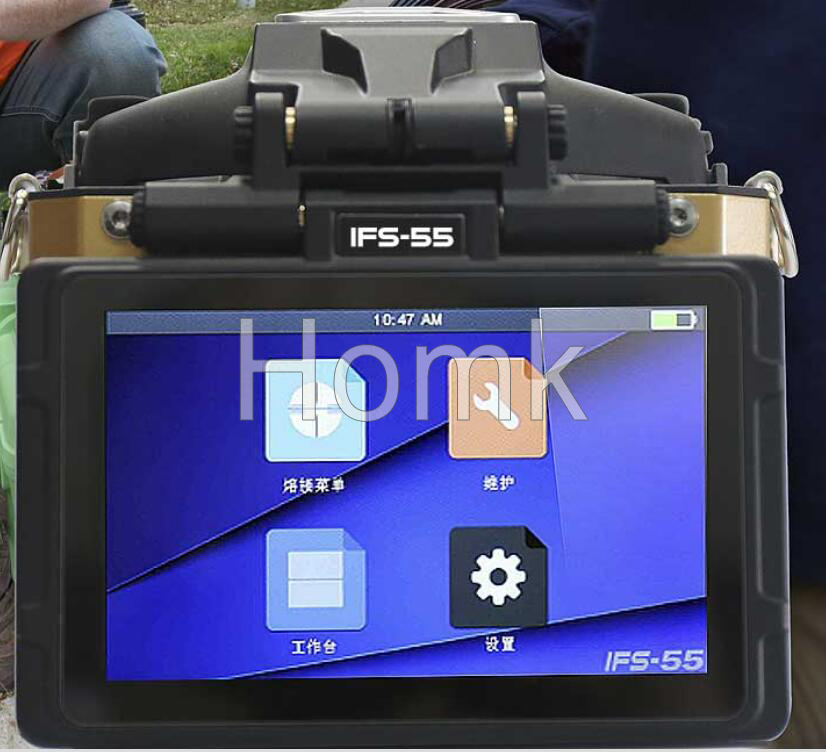

Display and interface

The core picture is extremely clear

     4.3 inch 800x480 HD liquid crystal capacitive touch screen
     300 times magnification
     Friendly intelligent operation interface

Product specifications
IFS-55 technical parameters
IFS-55

    size

    124H x 123W x 121Dmm
    weight

    1.5KG (with battery)
    display

    Touch screen / button

    Applicable core number

    Single core
    Welding time

    6 seconds
    heating time
    14 seconds


    Typical heating time

    Fiber amplification and display
    X
    Y
    XY
    X/Y

    Double click on 300x to enlarge
    Applicable fiber type
    SM

    (ITU-T G.652 & G.657)
    MM

    (ITU-T G.651)
    DS

    (ITU-T G.653)
    NZDS

    (ITU-T G.655)
    illumination

    3 LED white lights

    Fusion result storage
    Internal storage of 10,000 latest records and 2000 latest fusion screens
    port
    MINI HDMI
    Applicable fiber diameter
    0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, IndoorCable, invisible fiber
    Fiber placement and cutting length
    250μm-1000μm diameter coating layer /16-16mm cutting length
    Typical splice loss
    SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB, G. 657: 0.02 dB (measured by the shear method according to the ITU-T standard)
    Return loss
    >>60dB
    Splice loss estimate
    Have

    Fusion length
    10~60mm
    Pull test
    1.96~2.25N
    Operating condition
    Altitude 0~5000m,
    0~95% relative humidity,
    -20~50°C, 15m/s maximum wind speed
    Storage condition
    Relative humidity 0~95%, -10~50°C
    power input
    AC power supply AC100～240V, DC power supply DC12.6V～1.8A
    Battery welding and heating times
    Typical number of times (fusion + heating) battery: 3800mAh
    Electrode life
    5500 discharges (with a special cleaner can extend the service life of more than 20%)
