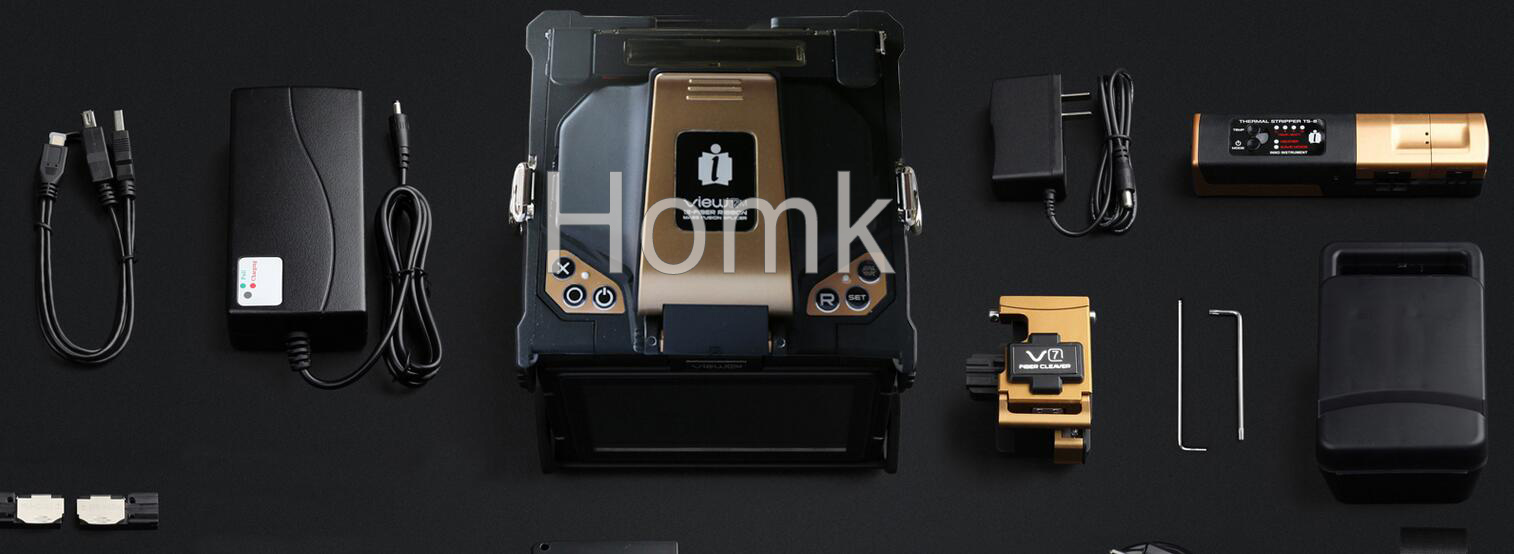

INNO view12M fiber fusion splicer

With its precise multi-core cladding technology, View12M is one of the most reliable fusion machines on the market. The exterior of the View12M fusion splicer is designed to maintain normal operation in a variety of harsh environments. View12M  uses an industrial-grade quad-core CPU, which is 8 times faster than  the previous generation IFS series. The GPU has a built-in WcatPro  graphics accelerator, a faster response, a simple and intuitive graphics  operating system, and a 4.3-inch 800x480 high-resolution LCD capacitive  touch screen. The user is more convenient to use, and the core is more clear. The View12M is equipped with a large capacity battery that can perform up to 85 fusion and heating operations. In addition, the improved heating bath allows heating up to 20 seconds. Combining  these advanced performance technologies, View12R will provide our customers with the most reliable operating experience.

Display and interface

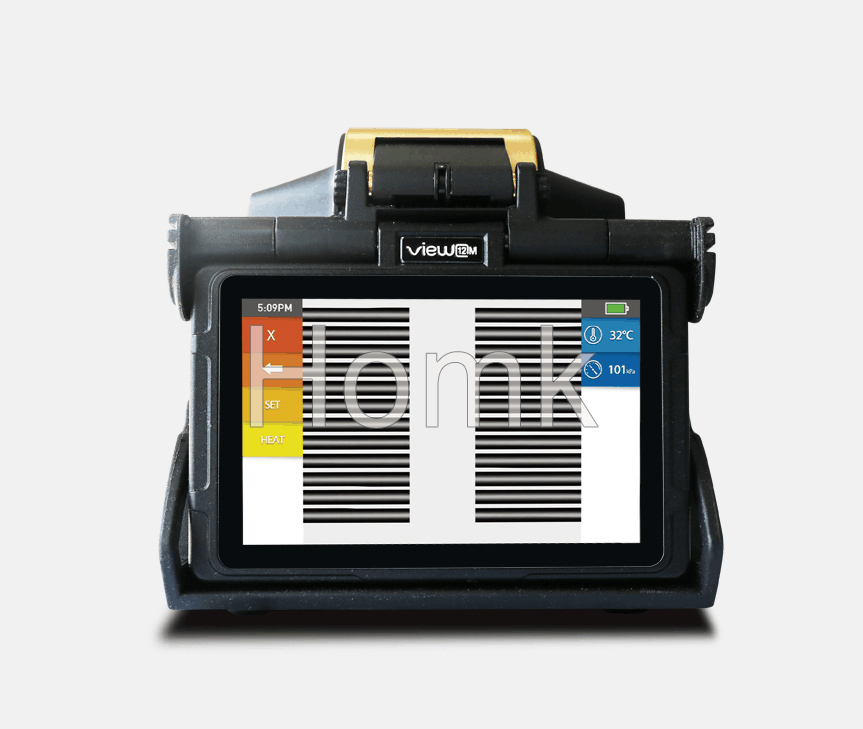

The core picture is extremely clear

     4.3 inch 800x480 HD liquid crystal capacitive touch screen
     Maximum 320 times magnification
     Friendly intelligent operation interface

Product specifications
View12M technical parameters
View 12M

    size

    135H x 136W x 130D mm
    weight

    1.65KG
    display

    Touch screen / button

    Applicable core number

    1,2,4,6,
    8,10,12
    Welding time

    15 seconds
    heating time
    20 seconds


    Typical heating time

    Fiber amplification and display
    X
    Y
    XY
    X/Y

    Double click 320x to enlarge
    Applicable fiber type
    SM

    (ITU-T G.652 & G.657)
    MM

    (ITU-T G.651)
    DS

    (ITU-T G.653)
    NZDS

    (ITU-T G.655)
    illumination

    3 LED white lights

    Fusion result storage
    2000 latest storage records and 2000 latest fusion screens
    port
    Micro HDMI
    Fiber placement and cutting length
    10mm to 13mm
    Splicing mode
    Up to 100 fusion modes
    Heating mode
    Up to 30 heating modes
    Typical splice loss
    SM: 0.05dB / MM: 0.02dB / DS: 0.08dB /
    NZDS: 0.08dB / G.657: 0.05dB (ITU-T standard is measured by shearing method)
    Return loss
    >>60dB
    Splice loss estimate
    Have

    Fusion length
    10~60mm
    Pull test
    1.96~2.25N
    Operating condition
    Altitude: 0~3600 meters,
    Relative humidity 0~95%,
    -10~50°C, 15m/s maximum wind speed
    Storage condition
    Relative humidity 0~95%, host: -20~60°C,
    Battery: -20~30°C
    power input
    AC Input 100-240V, DC Input 9-14V
    Battery welding and heating times
    3800mAh battery capacity, 85 times of typical fusion heating
    Electrode life
    Discharge 2000 times (with a special cleaner can extend the service life of more than 20%)
