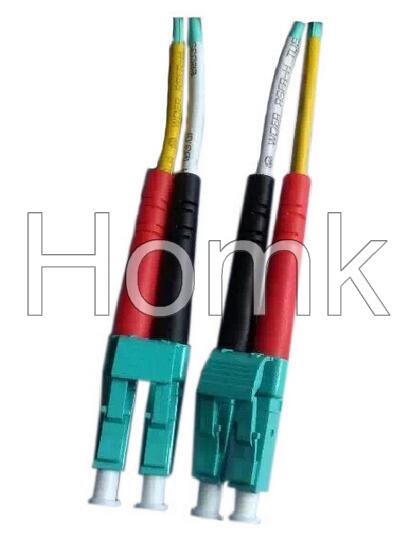

LC Fiber Patch Cord SM DX Red And Black Boot

Details

LC Fiber Patch Cord SM DX Red And Black Boot


Features:

1.Low insertion loss and back reflection loss fiber optic patch cord

2.Optical fiber patch cord with good echangeability

3.Connectors with good durability

4.High temperature stability fiber optic patch cord.

5.Standard: Telcordia GR-326-CORE

Specification:

Mode

SM

MM

Polish

UPC

APC

PC

Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB (1000 times mating)

Tensile Strengh

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB (+25+65 93 R.H.100 hours)
