LC-LC 12 core Single Mode Break Out Patch Cord

Details

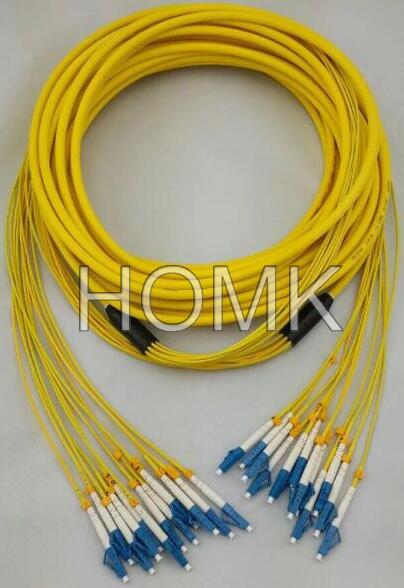

LC-LC 12 core Single Mode Break Out Patch Cord


A patch cord is a fiber optic cable used to attach one device to another for signal routing.


Armoured fiber patch cords are with stainless steel tube inside the outer jacket to protect the central unit of the cable.They are strong and flexible,can be bend randomly without being broken.


Patch cord Features:
Steel tape armored inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional

Patch cord Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication


Patch cord Specification:

Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

-40~75

-40~75

-40~75

-40~75

Storage temperature

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9
