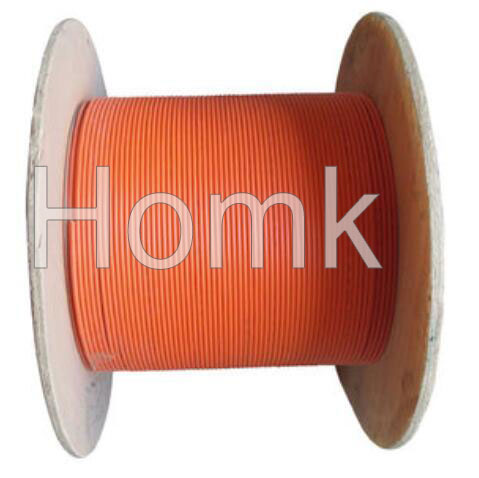

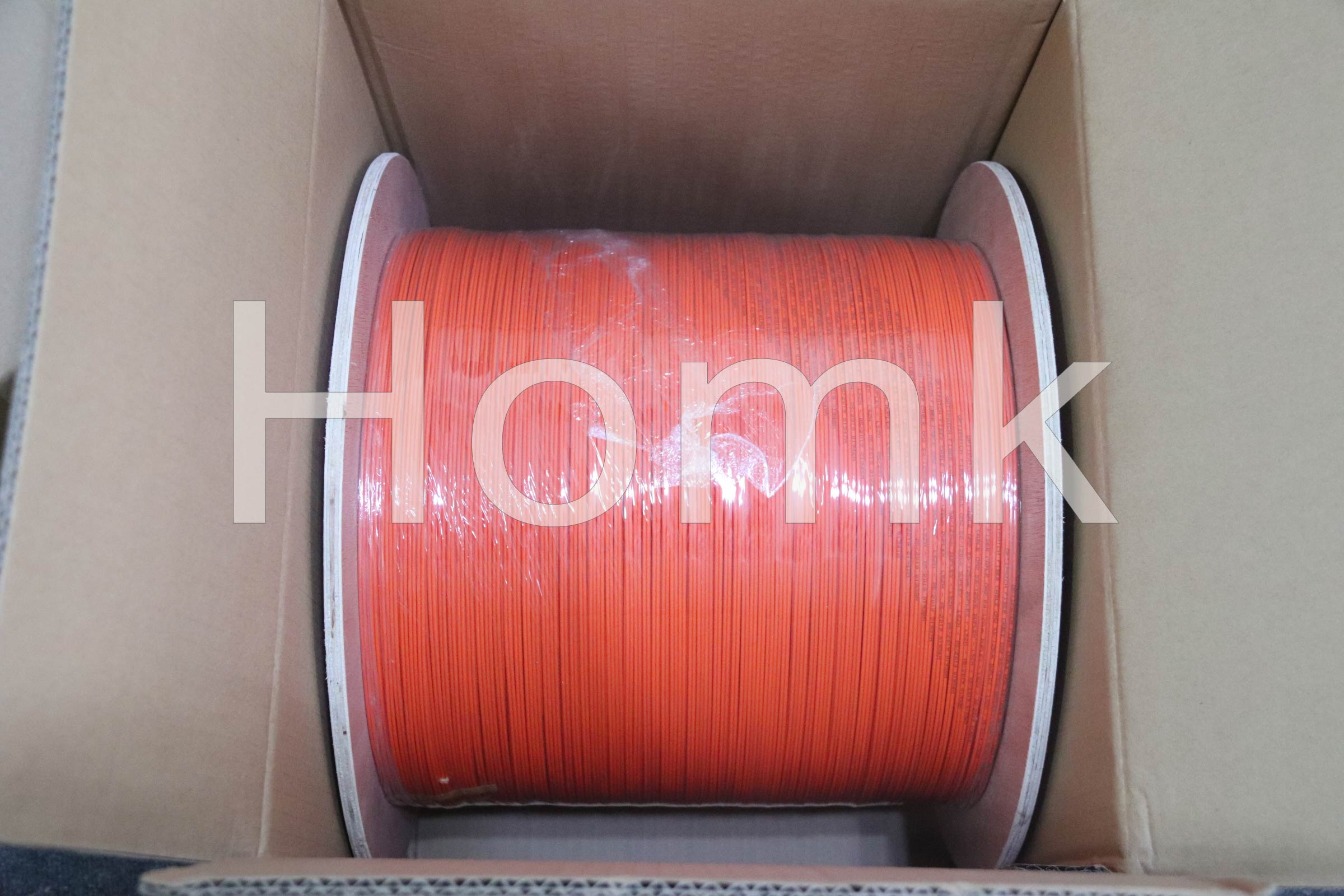

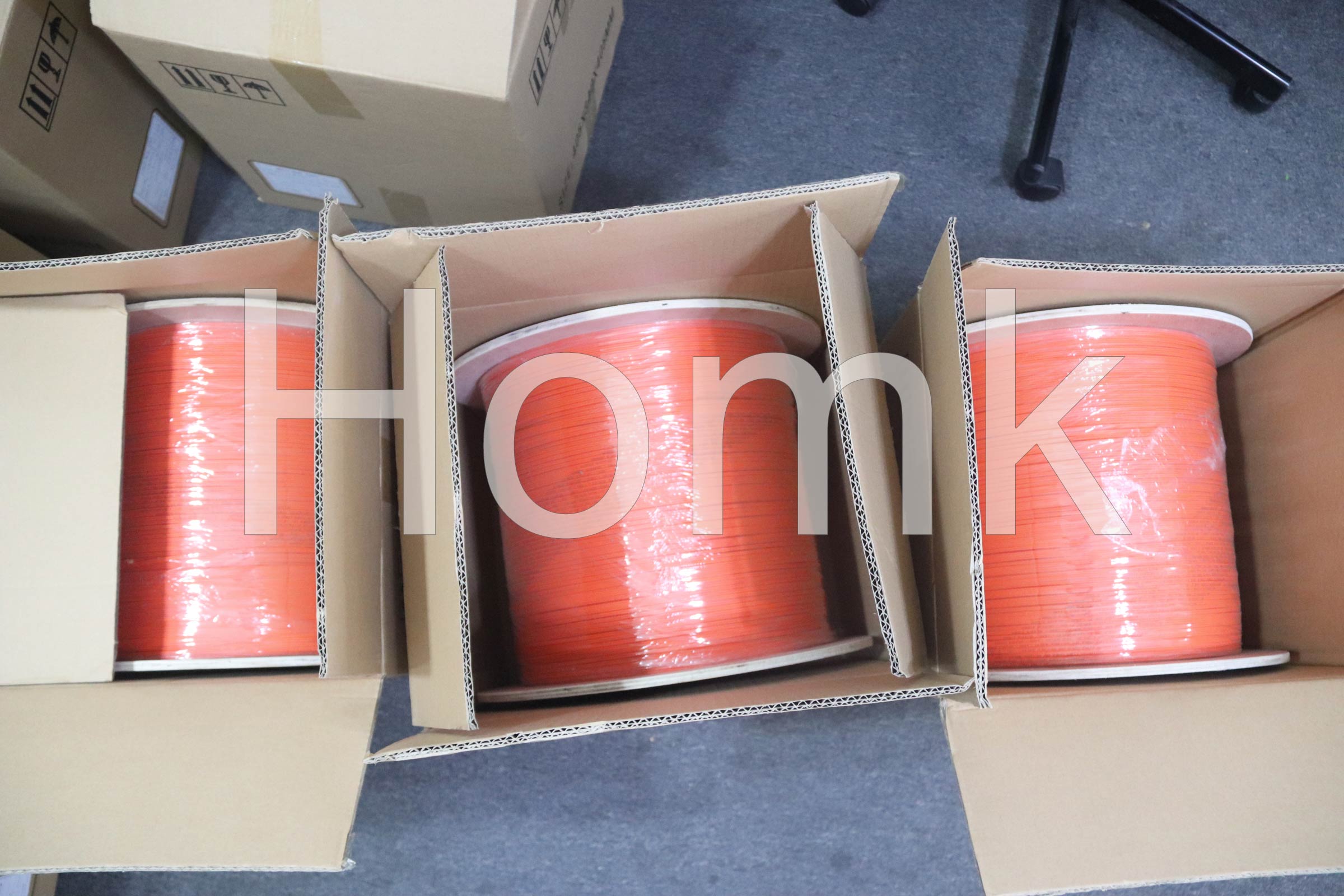

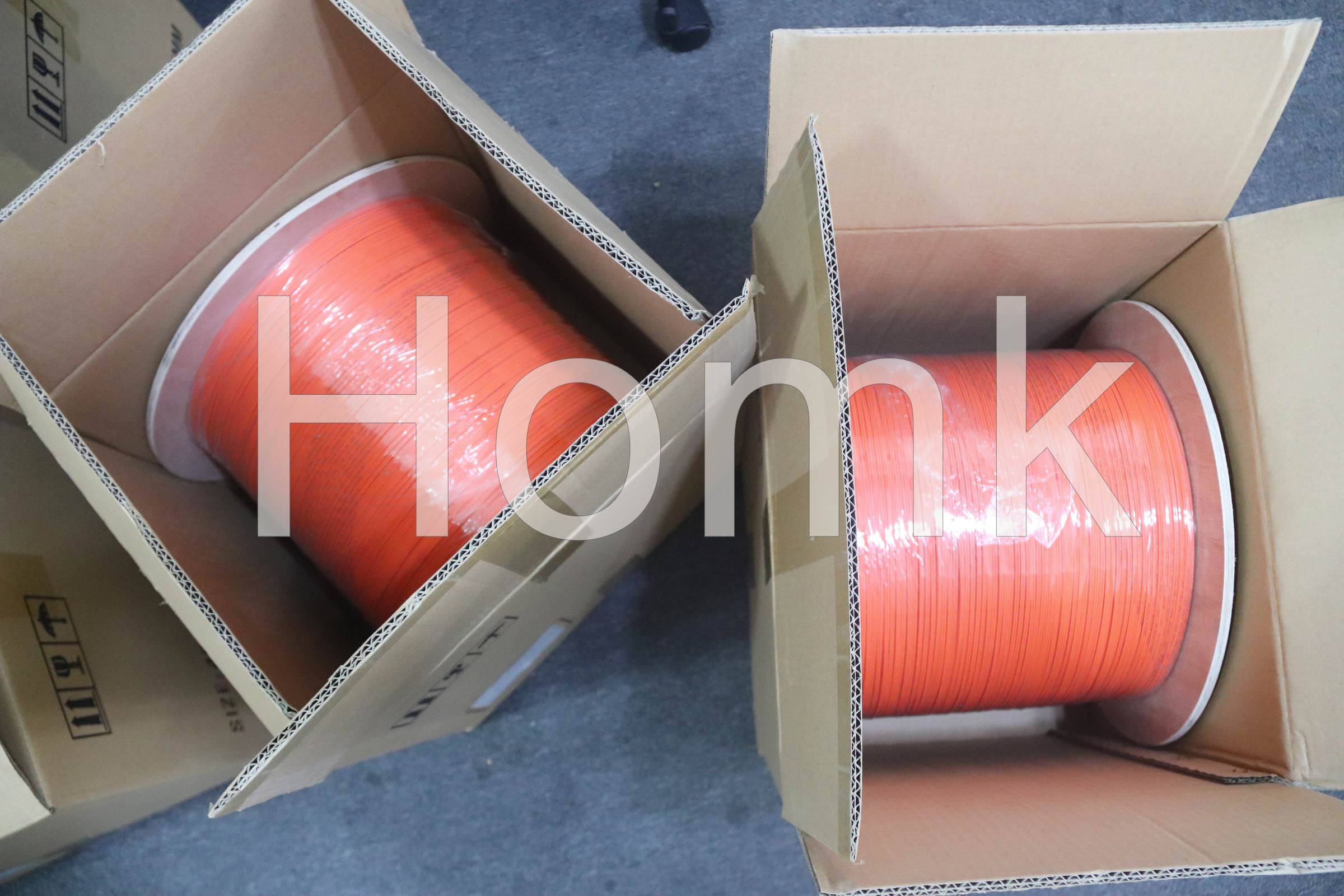

Multimode 50/125 Simplex 3.0mm PVC Fiber Optic Indoor cable 2KM
Application:
•Adopted to indoor distribution.
•As pigtail of communication equipment
•Suitable for communication equipment servrd
•Can be installed conveniently and perated simply
Characteristics:
•High strength kevlar yarn member
•High quality tight buffered or loose tube
•Soft and easy to strip
•Round construction
Technical Parameters:
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | Storage temperature | |||
| (MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | °C | |
| 2 | 1.6*3.3 | 4.4 | 60 | 120 | 200 | 1000 | 20D | 10D | -20 to +60 |
| 2 | 1.8*3.7 | 6.0 | 60 | 120 | 200 | 1000 | 20D | 10D | |
| 2 | 2.0*4.1 | 7.2 | 90 | 150 | 200 | 1000 | 20D | 10D | |
| 2 | 2.4*4.9 | 10.0 | 90 | 150 | 200 | 1000 | 20D | 10D | |
| 2 | 2.8*5.7 | 13.5 | 160 | 300 | 200 | 1000 | 20D | 10D | |
| 2 | 3.0*6.1 | 14.5 | 160 | 300 | 200 | 1000 | 20D | 10D | |
