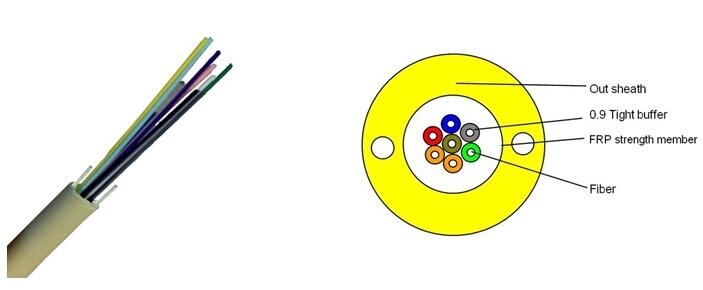

Non-metal Central Tight Tube Out
Product Name:Indoor Fiber Cable
Model:Non-metal Central Tight Tube Out Cable
Indoor Fiber Cable Application:
☆.The indoor fiber cable adopted to Outdoor distribution.
☆.The indoor fiber cable adopted to trunk power transmission system.
☆.access network and local network in high
electromagnetic interfering places.
Indoor fiber cable Characteristics:
Indoor fiber cable Characteristics：
☆.Non-metal strength member.
☆.More tight buffered design.
☆.Non-metal strength has an excellent anti-electromagnet ability.
| Indoor Fiber Cable Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 24 | 11 | 68.00 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| Indoor Fiber Cable Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
