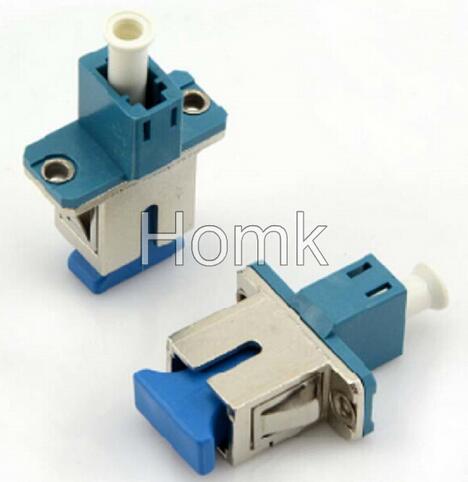

Metal SC-LC hybrid adapter

Details

Metal SC-LC hybrid adapter


SC-LC Fiber Optic Adapter, LC Fiber Optic Adapter, FC Fiber Optic Adapter, ST Fiber Opitc Adapter, MU Fiber Optic Adapter, MTRJ Fiber Optic Adapter, E2000 Fiber Optic Adapter, D4 Fiber Optic Adapter

Features:

Good inerchangeability
 Environmentally Stable and Relia
ble
 Accurate Size
 Excellent Return Loss

 Applicable standard: IEC 61754-13

 Complete Hybrid adapter

Technical Standard:

 Insertion Loss ≤0.2dB

 Retentiveness 200-600g

 Mating Durability1000 times≤ 0.2dB

 Exchangeability: < 0.2dB

 Salt Spray: &le; 0.2dB

 Sleeve material: ceramic / metal

 Temperature Rang -40 to +85


SPECIFICATIONS (Hybrid type adapter)

ITEMPARAMETER
Applicative adapter typeSC,LC,FC,ST,MU,D4,DIN
Fiber modeSingle modeMulti-mode
Adapter colorBlue, green, metalBeige, metal
Test wavelength1310nm, 1550nm850nm, 1300nm
Insertion Losstypical&le;0.15dB,Max&le;0.20dBtypical&le;0.15dB,Max&le;0.20dB
Repeatability&le;0.10dB
Interchangeability&le;0.20dB
Durability&le;0.20dB Max change,1000 mating
ChannelsSimplex,Duplex,4channels
Body materialPlastic or metal
Sleeve materialCeramic(ZrO2) or Customized
Operating Temperature-20&ordm;C to +70&ordm;C
Storage Temperature-40&ordm;C to +85&ordm;C
