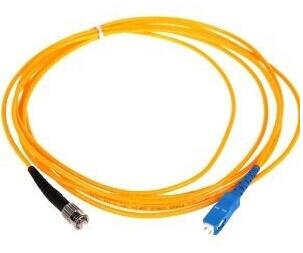

Fiber Patch Cord (SC-ST SM SX)
SC-STpatch cord stands for Lucent Connector.the SC-ST patch cord is a small form-factor fiber optic connector.
SC-ST patch cord Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
SC-ST patch cord Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths |
| 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
Return Loss(dB) | ≥45dB (PC/UPC) | ≥35dB(PC/UPC) |
TIA/EIA-455-107 | ≥55dB(APC) | |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
