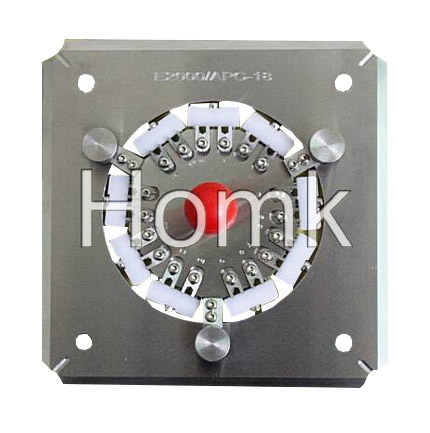

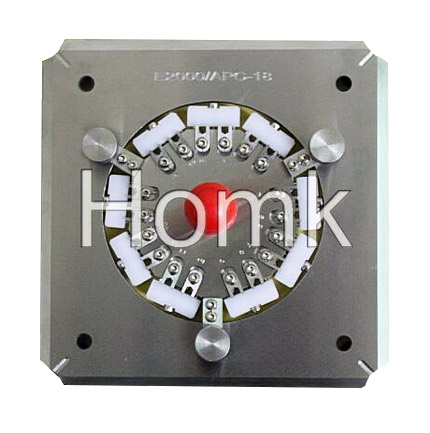

Polishing Fixture(E2000/APC-18)


100% Original Swiss S136 Material E2000/APC-18 Fiber Polishing Fixture By HOMK Exclusive Manufacturing

The E2000/APC-18 is IPC Structure, Independent compression of each  connector. The polishing fixture pass rate with Interference> = 98%  (100% Typical, according to IEC), APPEX OFFET is within 30. Our this polishing fixture is high stability and good surface quality.

It using high quality steel with heated treat, the  hardened steel S13 provide long service life. Our this polishing fixture  can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according  to the customer request.

1. The fixture  is used in four corners corners fiber polishing machine, to plishing connectors.

2. This jig  adopt independent pressurized way, eliminate ferrules show the different length effects on polishing.

3. Each one  can hold 18 connectors. It has high production efficiency.

4. The plugs of E2000/APC-18  can be interchanged, extend polishing fixture's life.

5. It  has good quality, high efficiency,

6. All kinds of polishing fixture can be customized according by customer requirment.
